CS10TM

Specifications

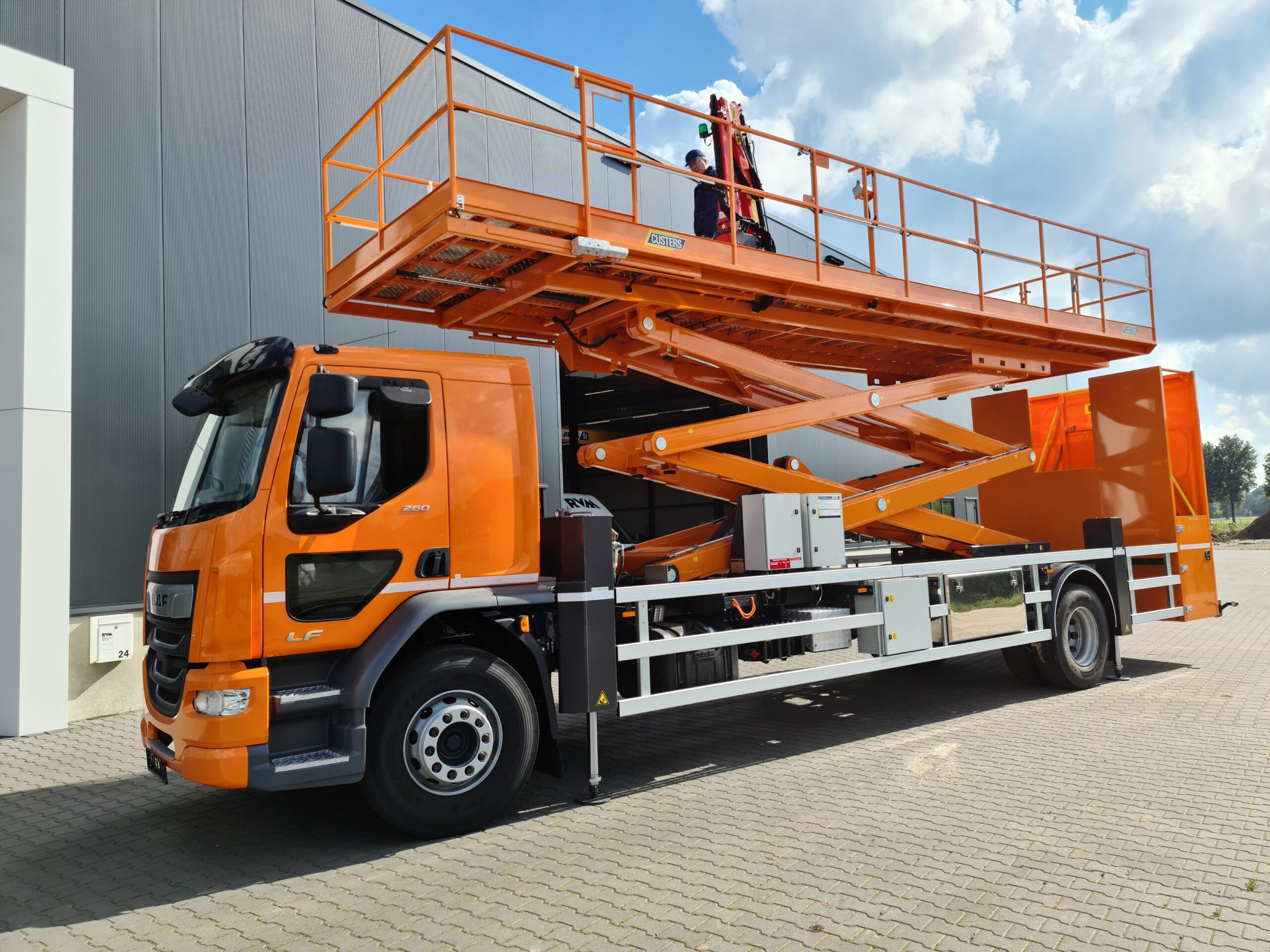

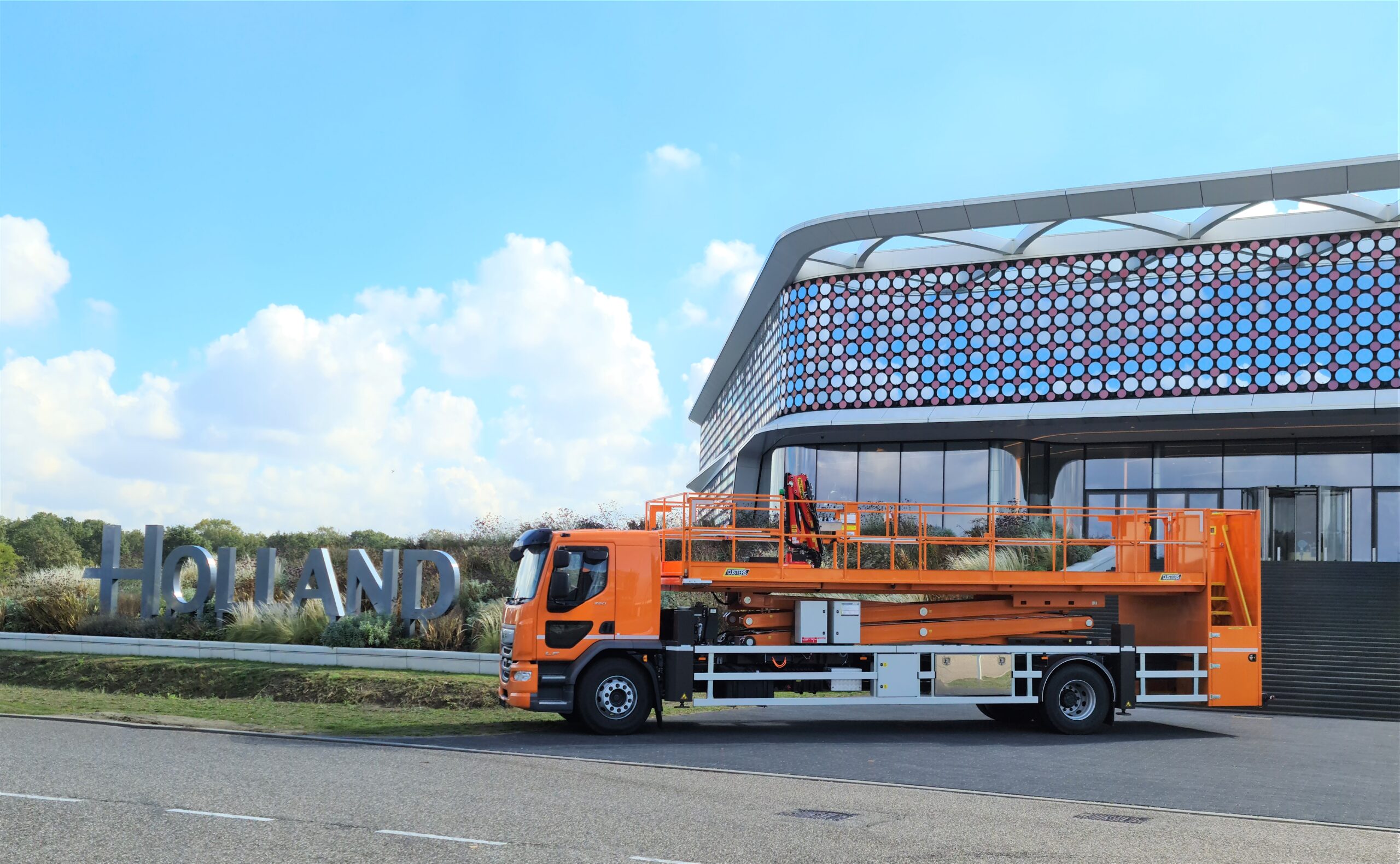

Vehicle mounted scissorlift with 10m working height

This is a scissorlift with a max. payload of 1000 kg to be mounted on a 19t truck, mostly used for infrastructural works. The front of the platform can be extended by 125 cm. This max. load of this extension platform is 400 kg.

The machine is specificly designed to place or replace AMI’s (advanced motorway indicator). 5 AMI’s can be stored on the platform at the same time. The platform therefore contains a hydraulical lifting crane capable of lifting 100 kg. PLC-control. Controlbox with fingertip joysticks. Stair-access positioned at the aft of the vehicle to enter the platform. Vehicle equipped with 4 hydraulic outriggers. Easy to operate. Safe and stable in use. Durable, robust machine.



Specifications

  • Max. working height*: 10.2m
  • Max. cagefloor height*: 8.2m
  • Max. payload platform: 1000 kg
  • Dimensions platform lxw*: 8m x 2.4m
  • Control: proportional
  • Max. tilt: 1°
  • GVW: min. 19t

*Depends on vehicle-type, GVW, outrigger-construction, platform-payload, others



CS10TM



Request your quote

Max. load 400 kg
