Engine stand B787
Aircraft
- B787
Suitable as
- Engine stand
Specifications
Request your quote
| Type | Deployable Maintenance stair |
|---|---|
| Conditions | Indoor use only |
| Dimensions (transport) | 2820mm x 1070mm x 1440mm |
| Platform height | 1950mm |
| Platform dimensions | 2600 x 750mm |
| Step width | 650mm |
| Stair angle | 50 degrees |
| Mass | 330 kg |
| Class | EN 12312-8 |
| Max load | 300 kg |

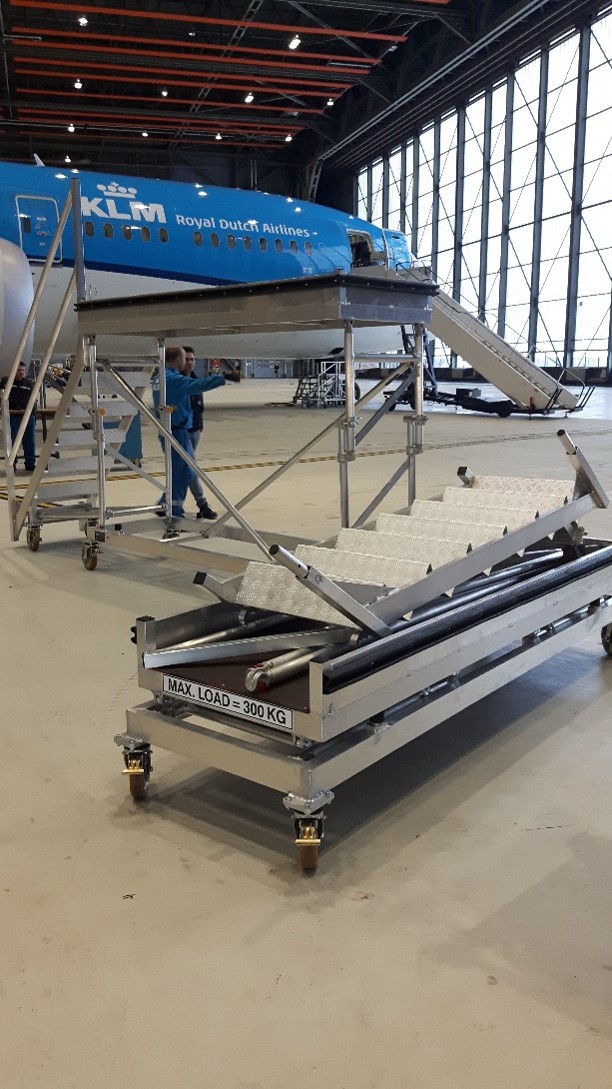

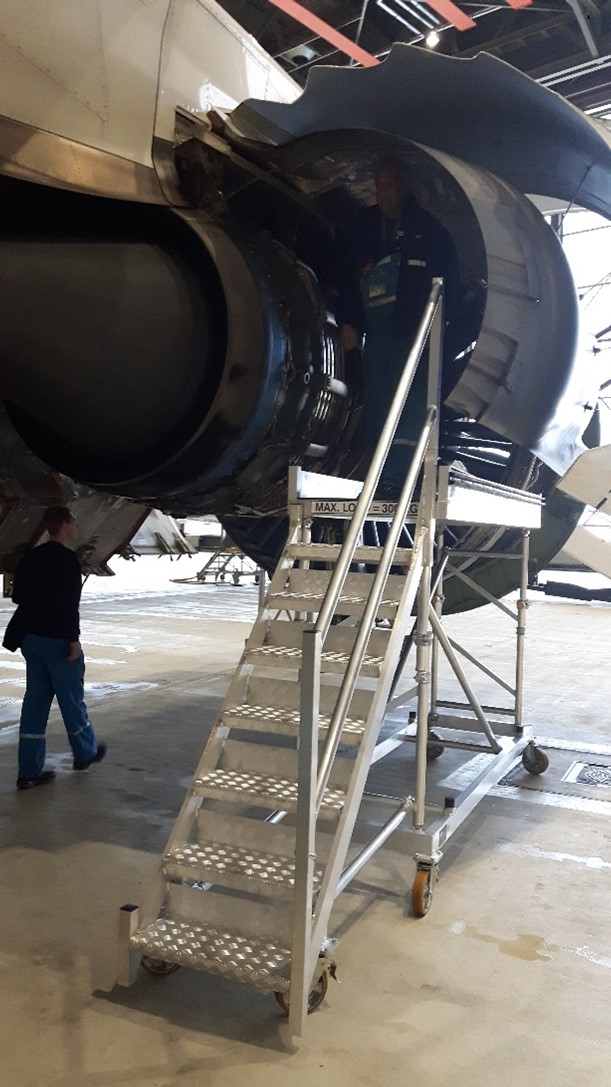

This custom-made engine stair with integrated work-platform is designed for performing maintenance work on the B787 engine.
This aluminium B787-stand is friendly in use, sturdy, stable, it is light and easy to manoeuvre and it is fitted with protective rubbers where necessary.
This maintenance stand is for inside use only, it can be dismantled quick and easy and it can be stored in the special containers provided for transport.
