Engine stand Embraer 135
- Embraer 135
- Engine stand
| Type | Maintenance stand |
|---|---|
| Conditions | Inside use only |
| Dimensions (transport) | 6150 x 3000 x 2850mm |
| Platform height | 1250 / 1750mm |
| Platform dimensions | 6150 x 3000mm |
| Step width | 800mm |
| Stair angle | 45 degrees |
| Mass | 1200 kg |
| Class | EN 12312-8 |
| Max load | 1000 kg |

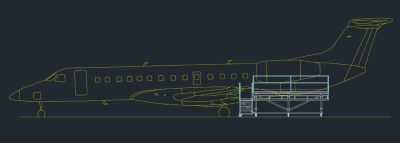

This engine stand is specifically designed for maintenance work on the Embraer 135 engines.
The complete stand consists of two separate platforms—one for the left side and one for the right—providing full accessibility to the engine area.
Constructed entirely from untreated aluminum, the stand offers an exceptional balance of strength and lightweight design. Despite its size, it remains easy to maneuver without compromising durability.
For added flexibility, the aircraft-facing side features a removable knee and hip railing. This allows the stand to be positioned close to the aircraft without risk of damage. Once in place, the railing can be reattached, ensuring a safe and secure working environment.
Designed with both efficiency and safety in mind, the Custers Engine Stand is the perfect solution for seamless engine maintenance on the Embraer 135.
