Main landing gear stand A330
Aircraft
- A330
Suitable as
- Maintenance dock
Specifications
Request your quote
| Type | Maintenance stair |
|---|---|
| Conditions | Indoor use |
| Dimensions (transport) | 4050mm x 2170mm x 2910mm (2 pieces) |
| Platform height | 2100mm |
| Platform dimensions | 2750mm x 1830mm |
| Step width | 600mm |
| Stair angle | 45 degrees |
| Mass | 320 kg per stand |
| Class | EN 12312-8 |
| Max load | 300 kg per stand |

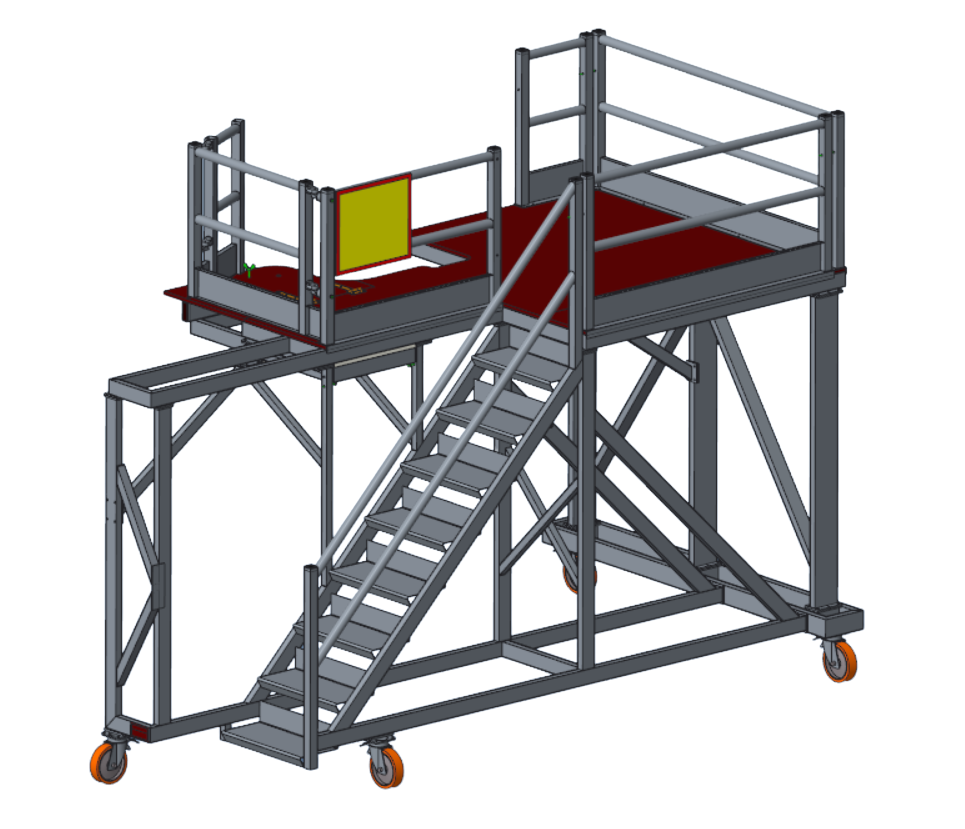

This aluminium main landing gear stand A330 is a customized safe work platform to do maintenance works (like e.g. lubricating) on and within the landing gear.
The stair with integrated work-platform is equipped with 4 swivel castors with brakes in both swivel and rolling direction for easy positioning.
This stair A330 with its FOD-free design, is friendly in use, sturdy, stable, it is light and it is fitted with protective rubbers where necessary.
This maintenance stair is for inside use only.
