Main landing gear stand B787
Aircraft
- A330
Suitable as
- Maintenance dock
Specifications
Request your quote
| Type | Maintenance stair |
|---|---|
| Conditions | Inside use only |
| Dimensions (transport) | 2260 x 1730 x 1900 |
| Platform height | 1900mm |
| Platform dimensions | 1050 x 800mm |
| Step width | 800mm |
| Stair angle | 50 degrees |
| Mass | 400 kg |
| Class | EN 12312-8 |
| Max load | 150 kg |

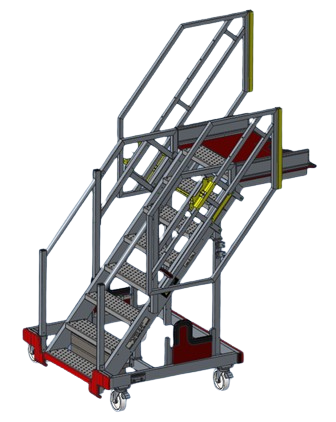

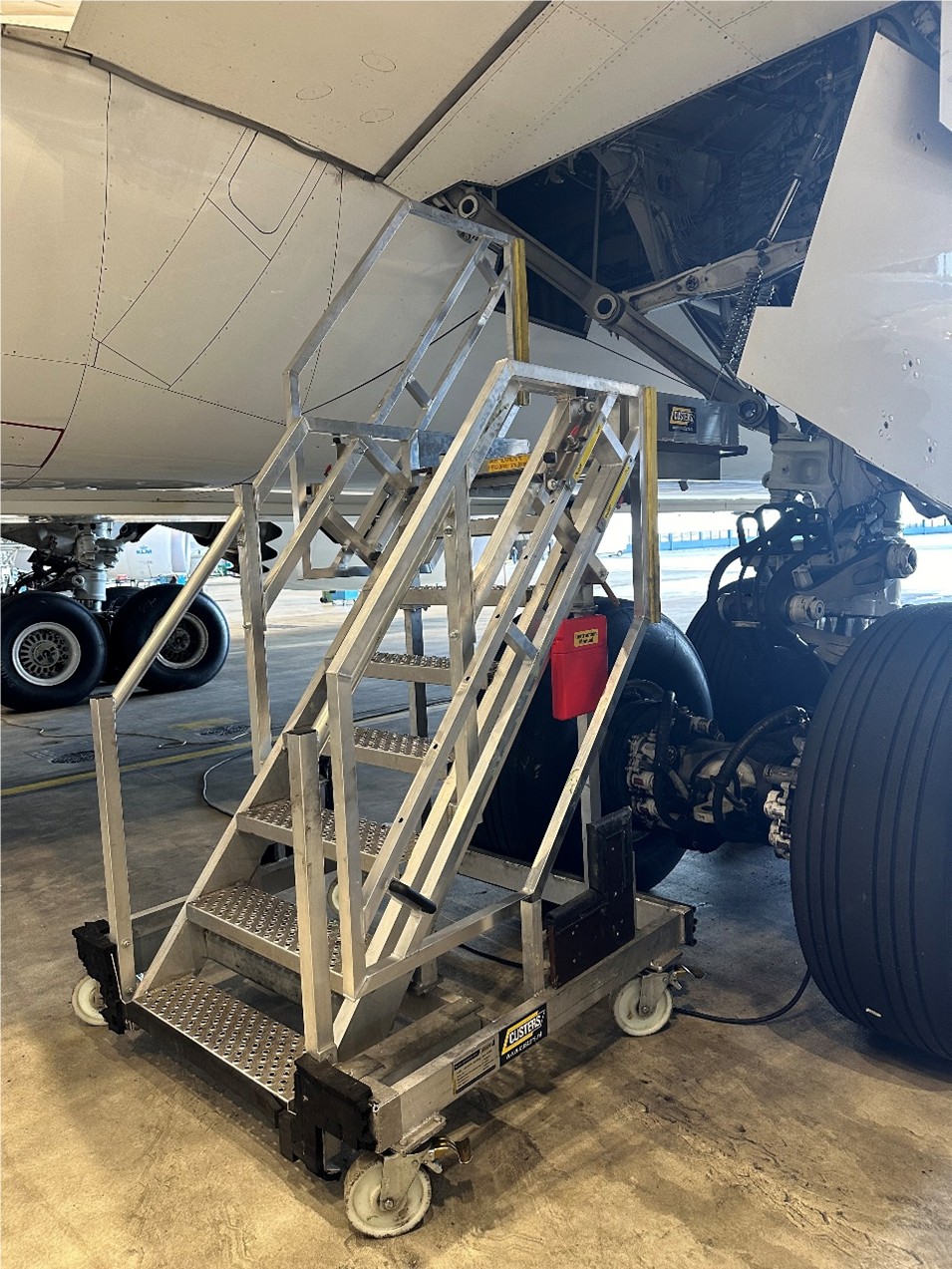

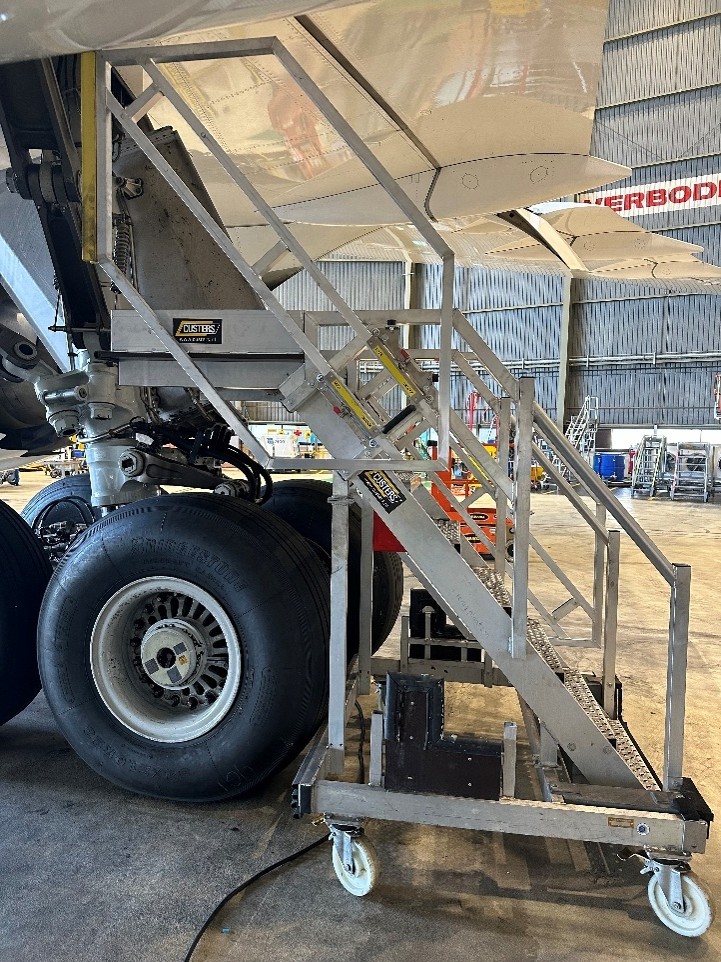

This aluminium main landing gear stair B787 has guardrails which can be positioned in such a way that this provide maximum fall protection at given limited working spot.
The stair is equipped with 4 swivel castors with brakes in both swivel and rolling direction for easy positioning.
This stair B787 with its FOD-free design, is friendly in use, sturdy, stable, it is light and it is fitted with protective rubbers where necessary.
This maintenance stair is for inside use only.
Remark:
This stair has 2 slidable guardrails (left, and right). Depending on the situation, they can be separately moved up or down. Because of it, this stair can be used for various maintenance tasks for multiple aircrafts.
