Multipurpose stair 2240-3930mm

Aircraft
  • A220
  • A319
  • A320
  • A321
  • A330
  • A340
  • A350
  • A400M
  • AH-64
  • Alpha Jet
  • AW101
  • AW109
  • AW139
  • AW189
  • B737
  • B747
  • B767
  • B777
  • B787
  • C130
  • C235
  • C295
  • CH-47
  • Embraer 135
  • F16
  • F35
  • Falcon 50
  • G650
  • H135/H135M
  • H145/H145M
  • H215/H215M
  • H225/H225M
  • NH90
  • Pilatus PC-7 MKX
Suitable as
  • Multi purpose stand
Specifications
Type Maintenance stair
Conditions Indoor use only
Dimensions (transport) 4620 x 1780 x 3360
Platform height 2240 – 3930mm
Platform dimensions 1100 x 650mm
Step width 600mm
Stair angle 50 degrees
Mass 450 kg
Class EN 12312-8
Max load 300 kg
Request your quote

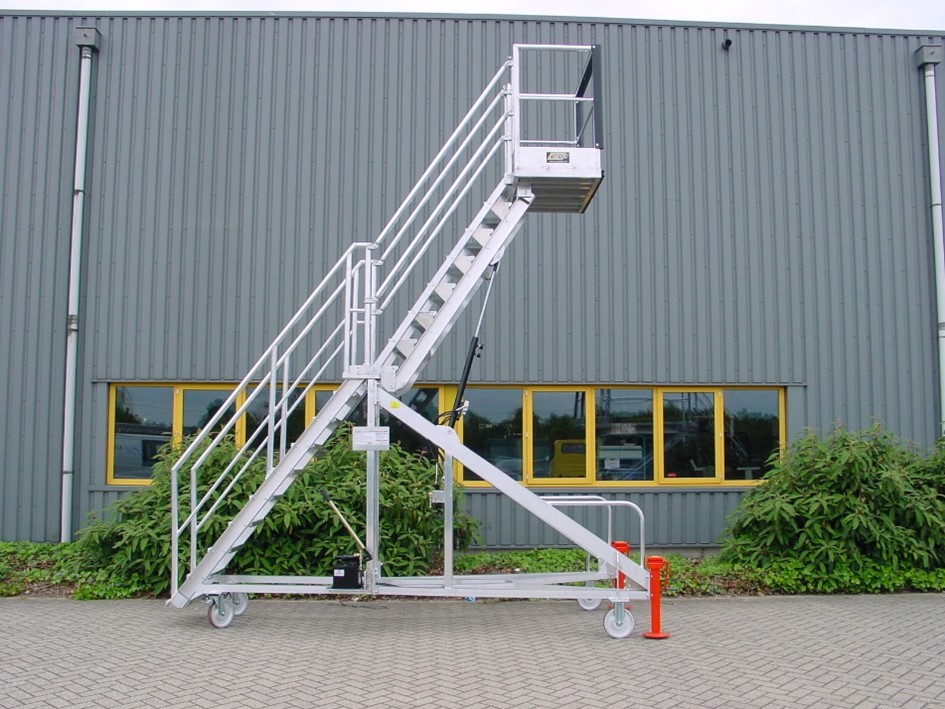

This multi-functional stair generates platform heights between 2240mm and 3920mm. This hydraulically operating height adjustment can be activated smoothly by means of a hand pump. The stair is easy to operate and it is solid and stable. This multipurpose stair 2240-3390mm is for inside use only.
