Paint Dock A220
- A220
- Paint dock
| Type | Paint Docks |
|---|---|
| Conditions | Indoor use only |
| Step width | 600mm |
| Stair angle | 50 degrees |
| Mass | 37.300kg |
| Class | EN 12312-8 OSHA |
| Max load | 500 kg |

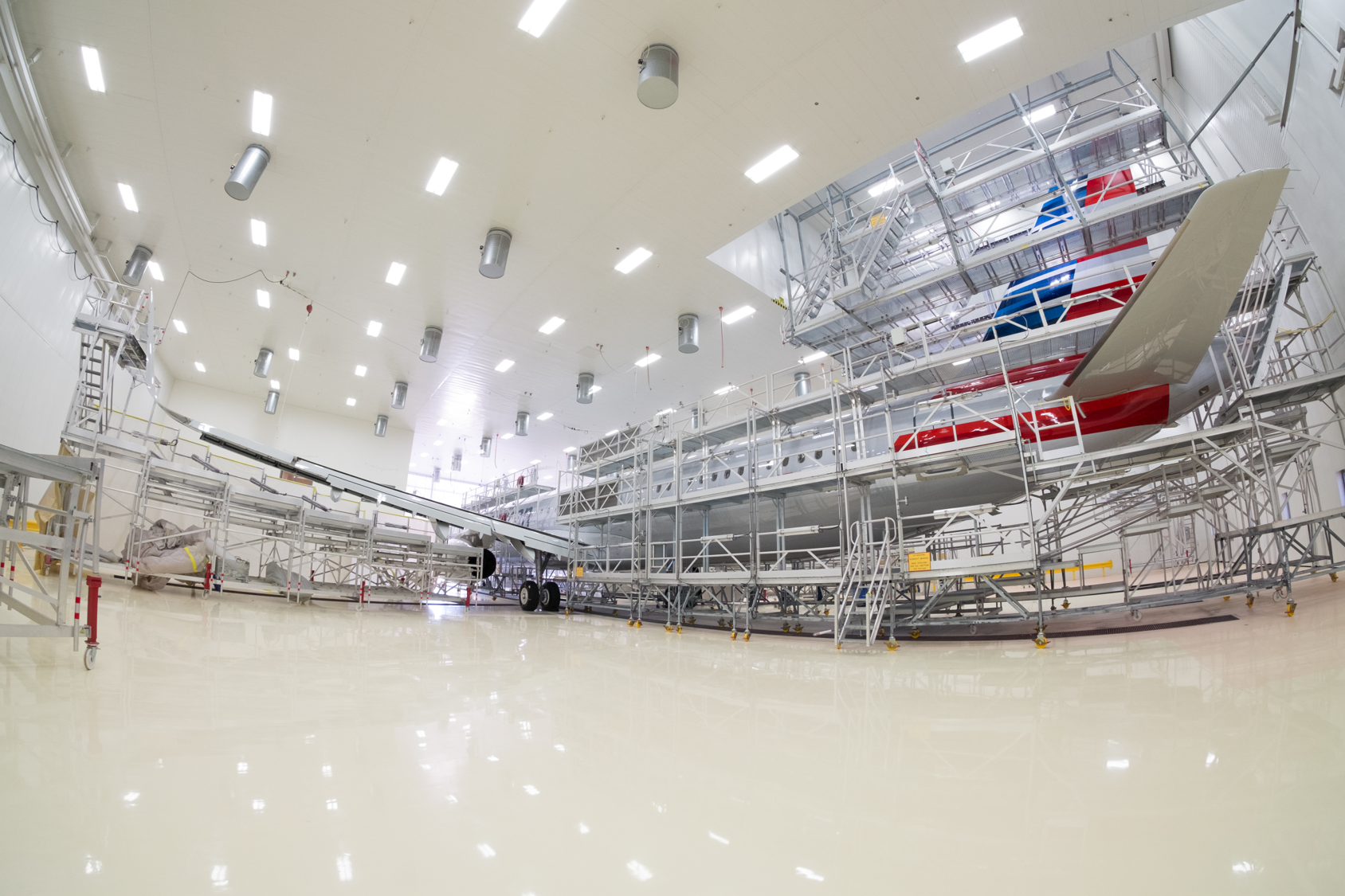

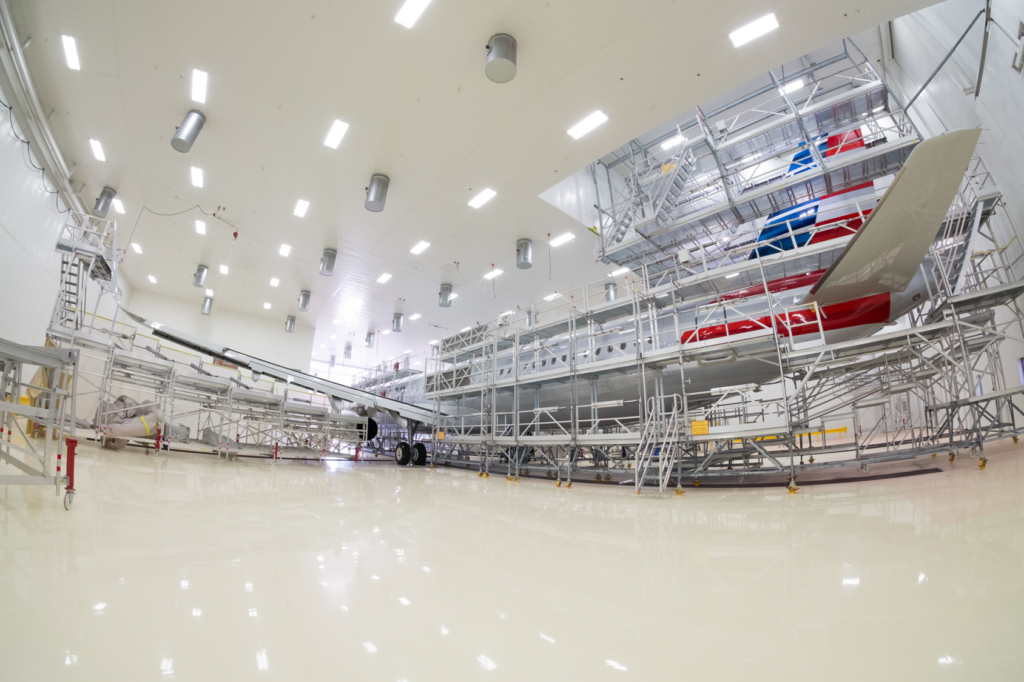

This paintdock is suitable for the A220 aircraft.

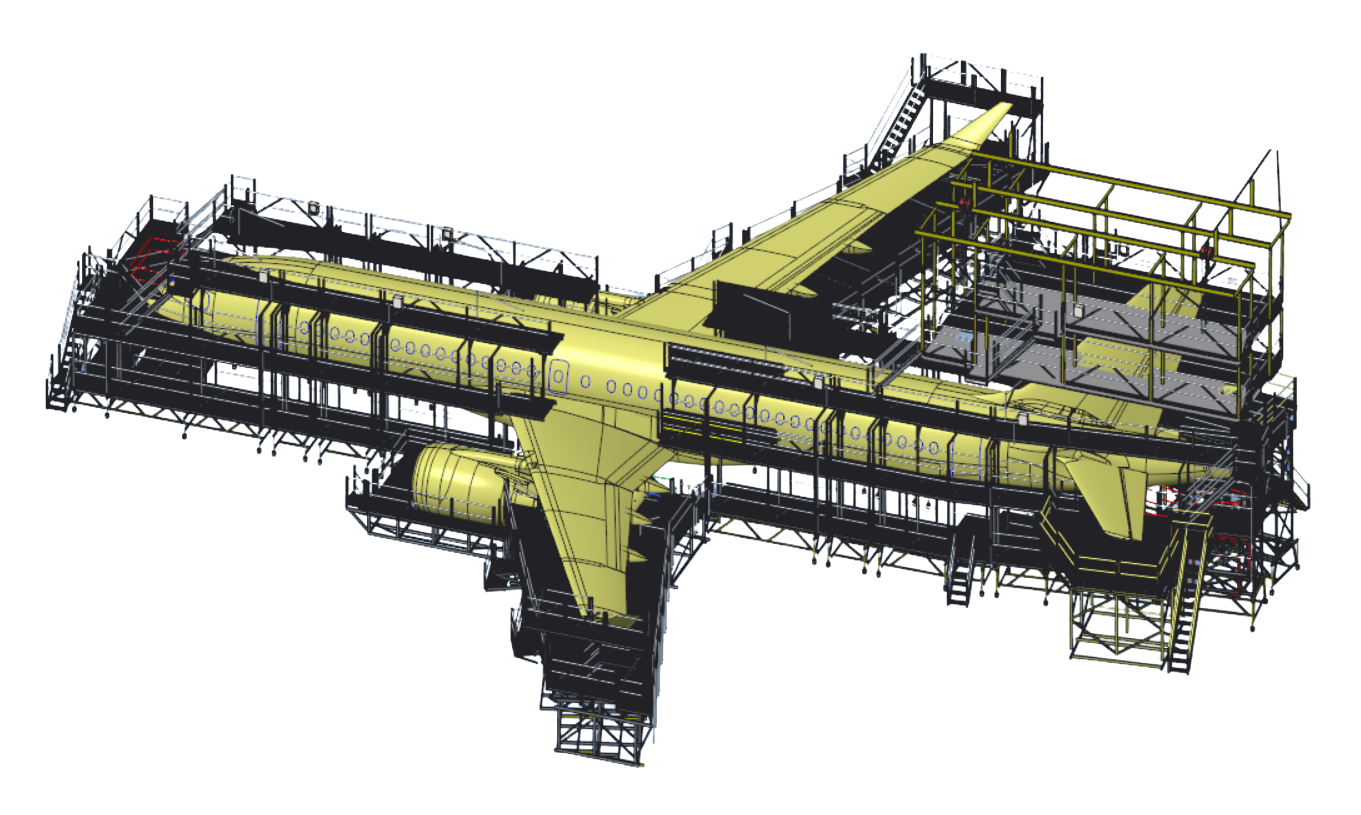

It has steel undercarriage frame with aluminium frame-sections. The complete aircraft can be reached easily to do all the paint work. It consists of cockpit, fuselage dock , wing, engine and tail dock-sections. The tail-dock is a hanging dock attached to the ceiling of the hangar.
The paintdock is mobile and is easy to manoeuvre, which make a quick docking an aircraft possible. All sections are designed to the applicable safety standards for workshops and are meeting the current safety standards EN 1915, EN 12312-8, as far as it is applicable for this access equipment.
The assembly of the paintdock can be done by yourself based on detailed 3D-images and manual. Once completely installed, a Custers supervisor will come to check and approve the paintdock.
