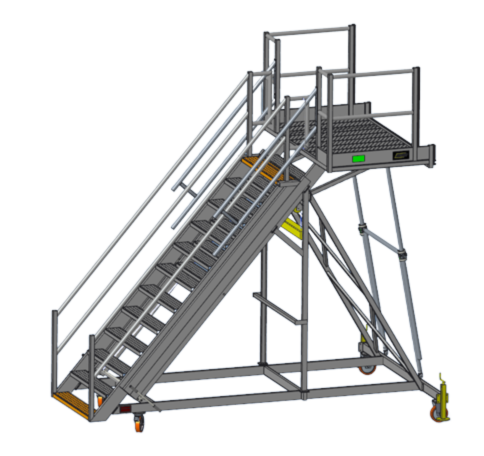

PAX door stand A320
Aircraft
- A320
Suitable as
- Pax door stand
Specifications
Request your quote
| Type | Access stair |
|---|---|
| Conditions | Indoor use only |
| Dimensions (transport) | 4220 x 2850 x 4240 |
| Platform height | 3120 – 4320mm |
| Platform dimensions | 2100 x 1250mm |
| Step width | 1200mm |
| Stair angle | 50 degrees |
| Mass | 525 kg |
| Class | EN 12312-8 |
| Max load | 250 kg |
This PAX door stand with its FOD-free design is equipped with a practical manually operated height adjustment solution (3120mm-4320mm) by using a counterweight, this makes it easy to adjust the height by steps of 25cm each. This feature is also equipped with a double locking mechanism to prevent unwanted height adjustment.
This aluminium stair is friendly in use, sturdy, stable, it is light and easy to manoeuvre and it is fitted with protective rubbers where necessary.
This PAX door stair is for inside use only.
