PAX door stand Narrow Body
Aircraft
- A220
- A319
- A320
- A321
- B737
Suitable as
- Pax door stand
Specifications
Request your quote
| Type | Access stair |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | 6150 x 2320 x 3000 |
| Platform height | 1900 – 3900mm |
| Platform dimensions | 2100 x 1250mm |
| Step width | 800mm |
| Stair angle | up to 50 degrees |
| Mass | 860 kg |
| Class | EN 12312-8 |
| Max load | 300 kg |
Ideally suited for A220, B737, A320.

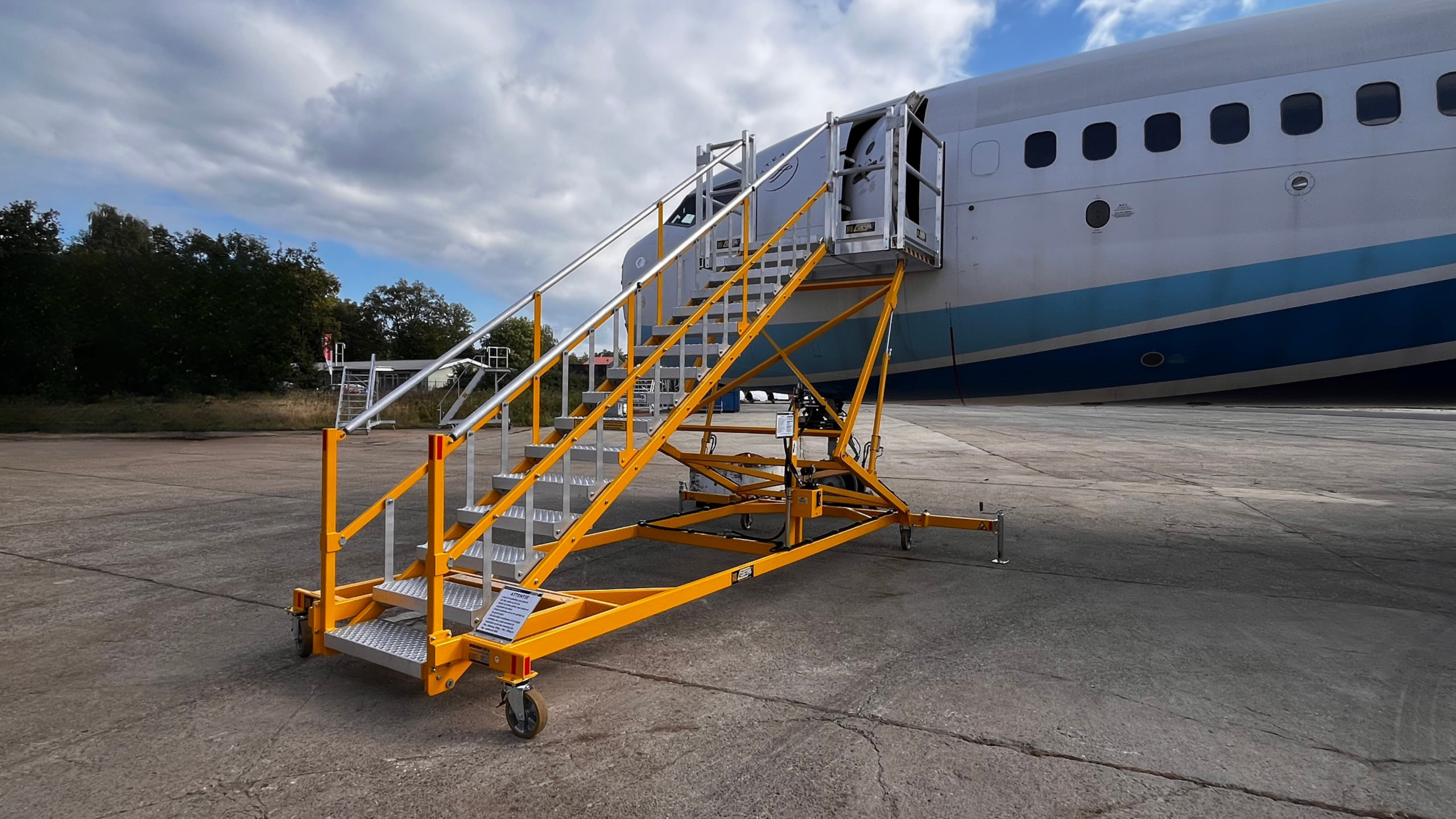

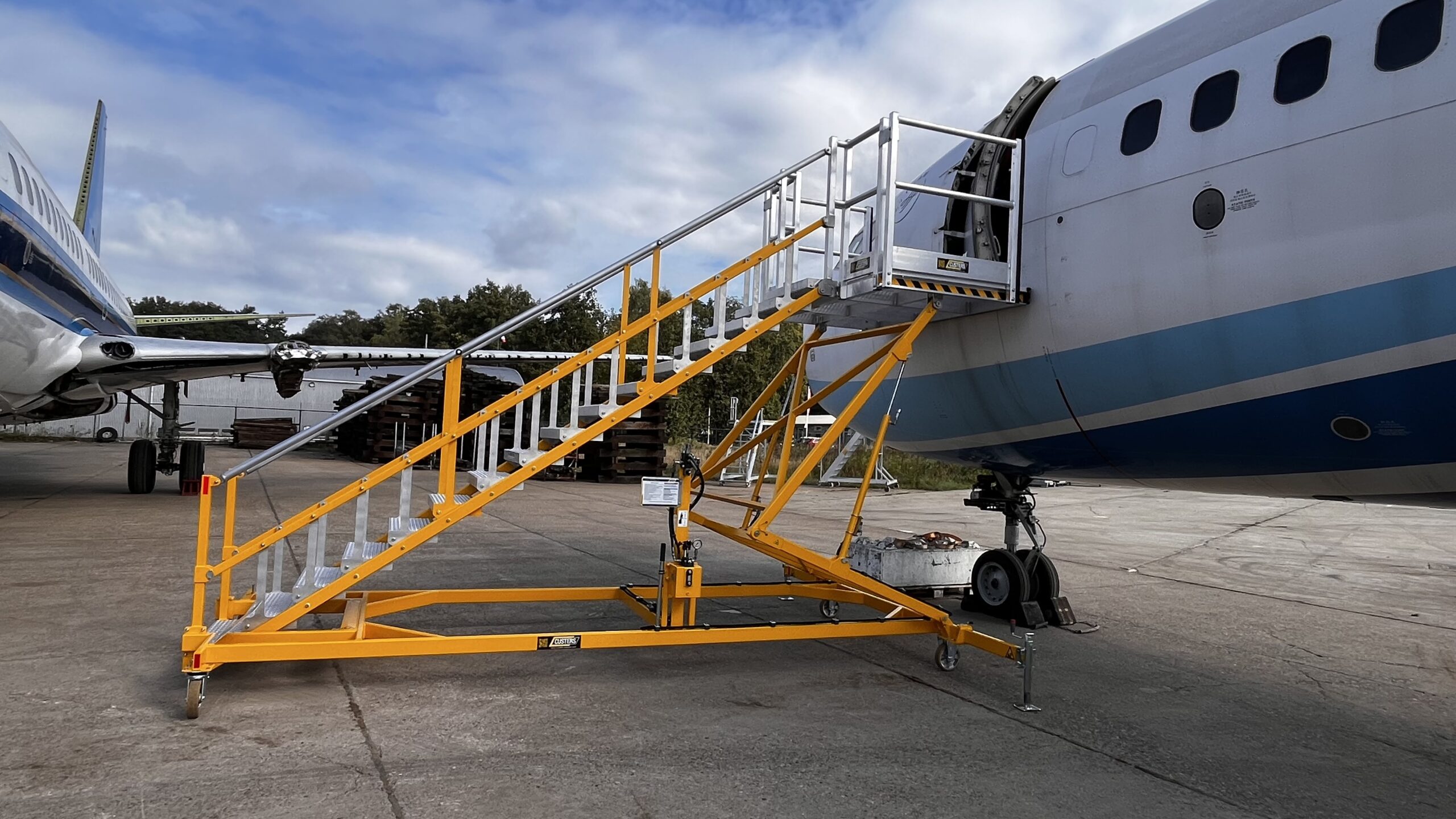

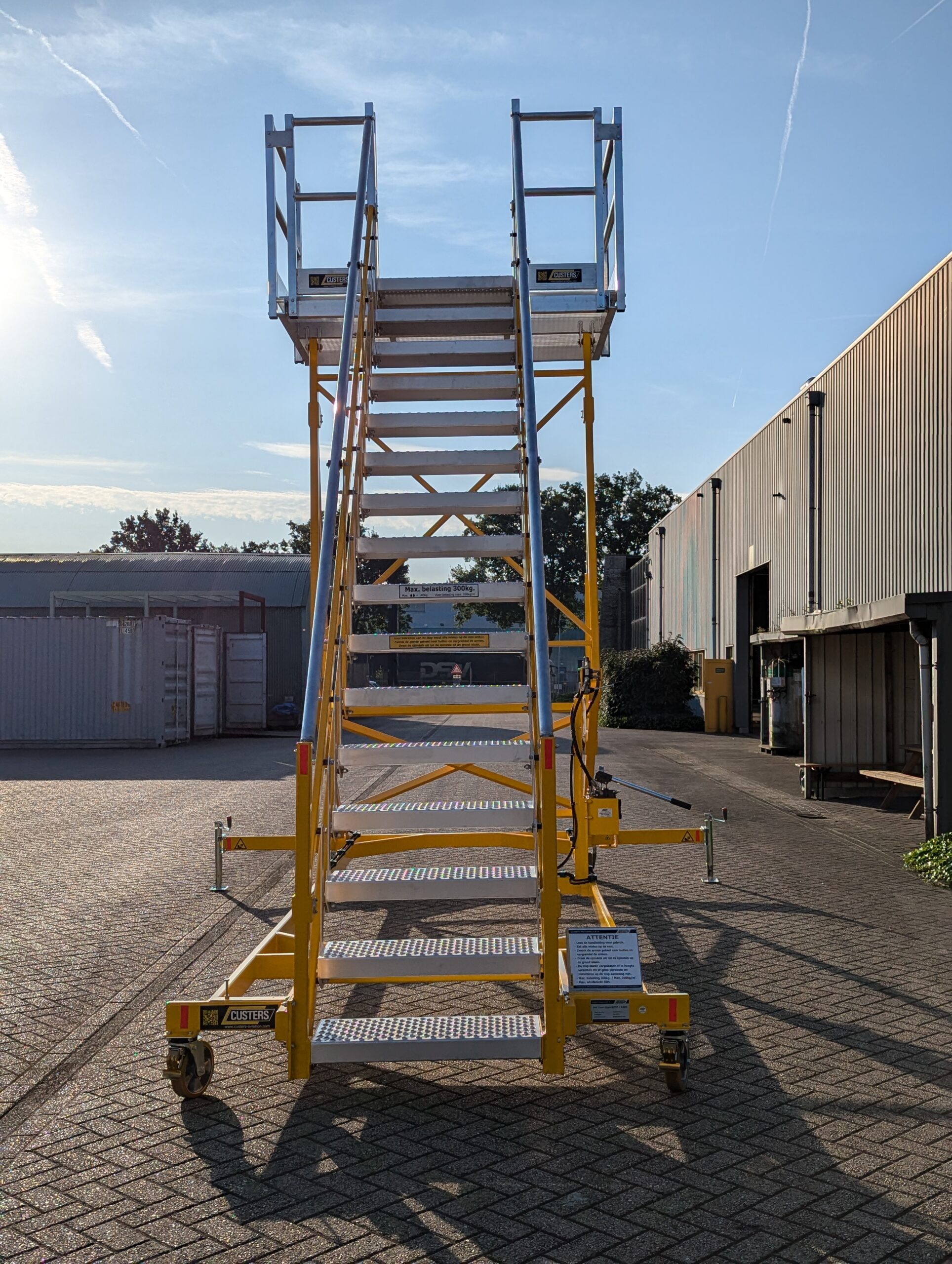

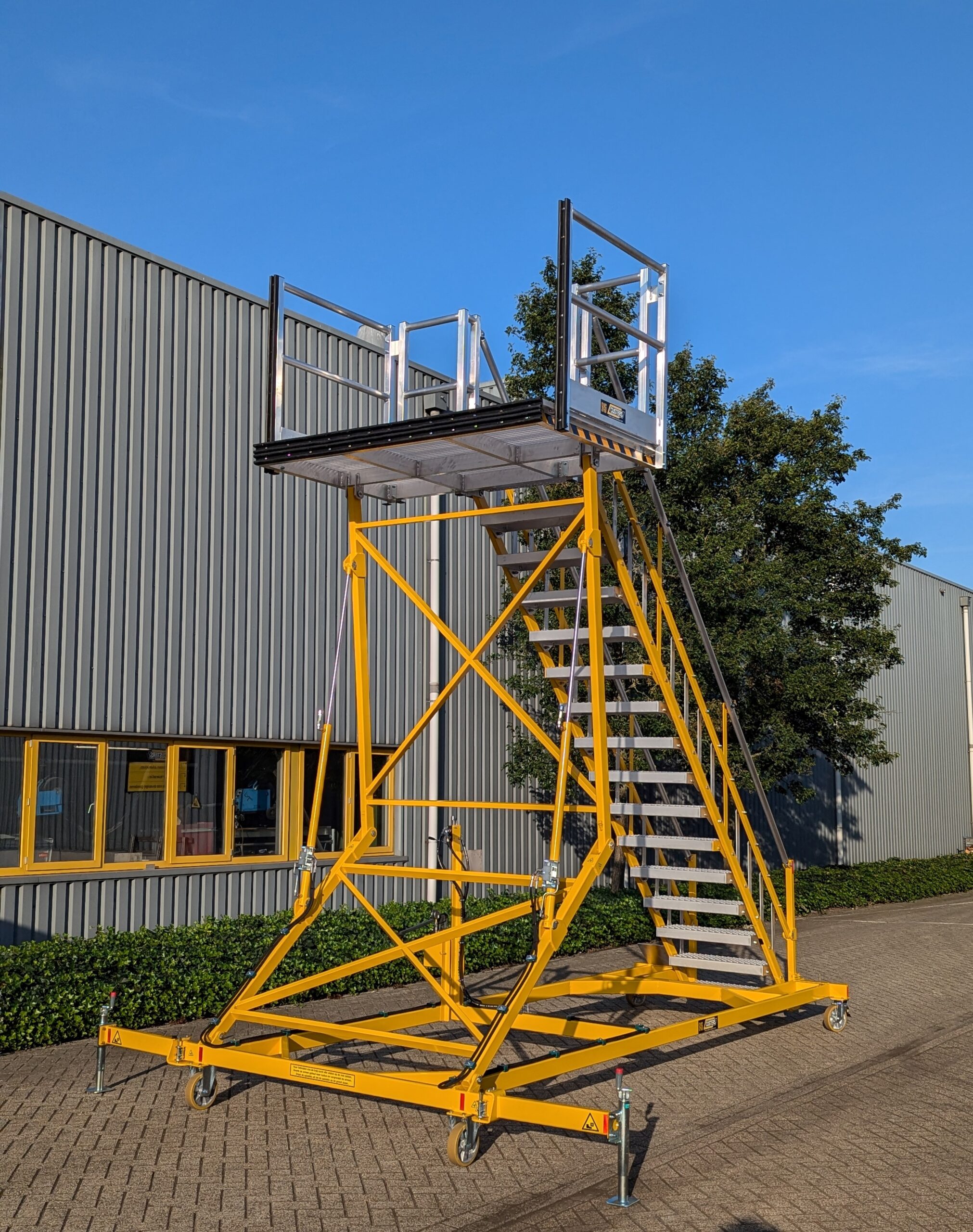

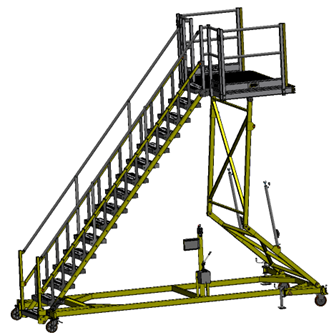

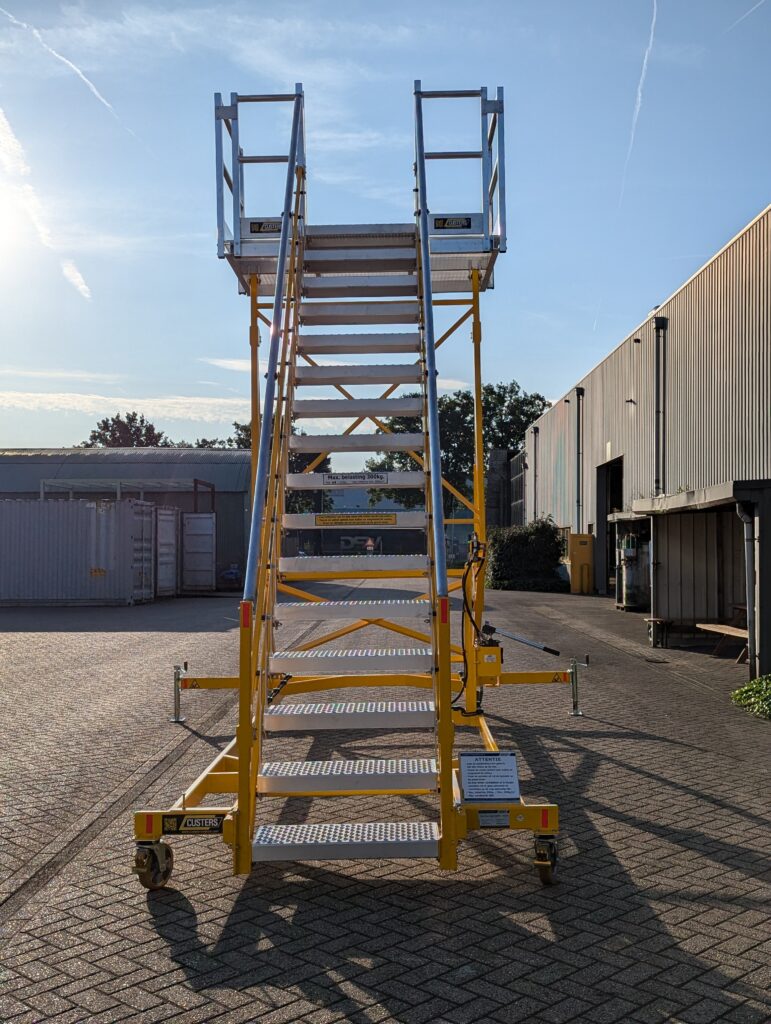

This multi-functional, stable and safe access stand consists of a well-coated steel base with an untreated aluminium superstructure.
The undercarriage has 2 braked swivel castors, 2 fixed wheels and two outriggers to ensure optimal levelling of the stand.
The stand has an user-friendly operation and it can be moved quickly and lightly.
The height adjustment is being done by means of a hand pump which activates two lifting cylinders.
The max. load is 2 persons, max. 250kg.
The front of the platform guardrails and the floor are fitted with protective rubber.
