Tail dock Falcon 50
Aircraft
- Falcon 50
Suitable as
- Tail dock
Specifications
Request your quote
| Type | Maintenance stand |
|---|---|
| Conditions | Inside use only |
| Dimensions (transport) | 8500 x 9400 x 7100mm |
| Platform height | 1250 / 3750 / 6000mm |
| Platform dimensions | varies |
| Step width | 800mm |
| Stair angle | 45 – 50 degrees |
| Mass | 3100 kg |
| Class | EN 12312-8 |
| Max load | 1.000 kg |

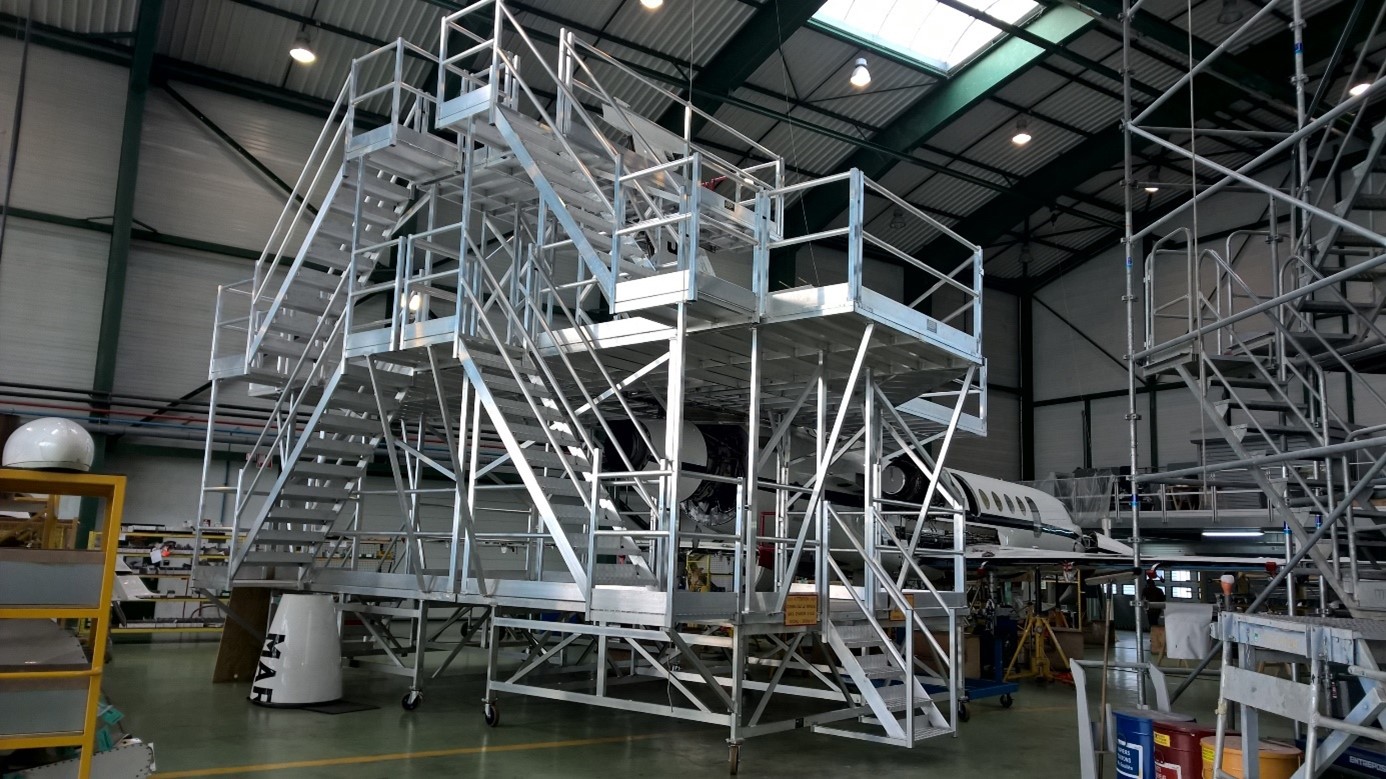

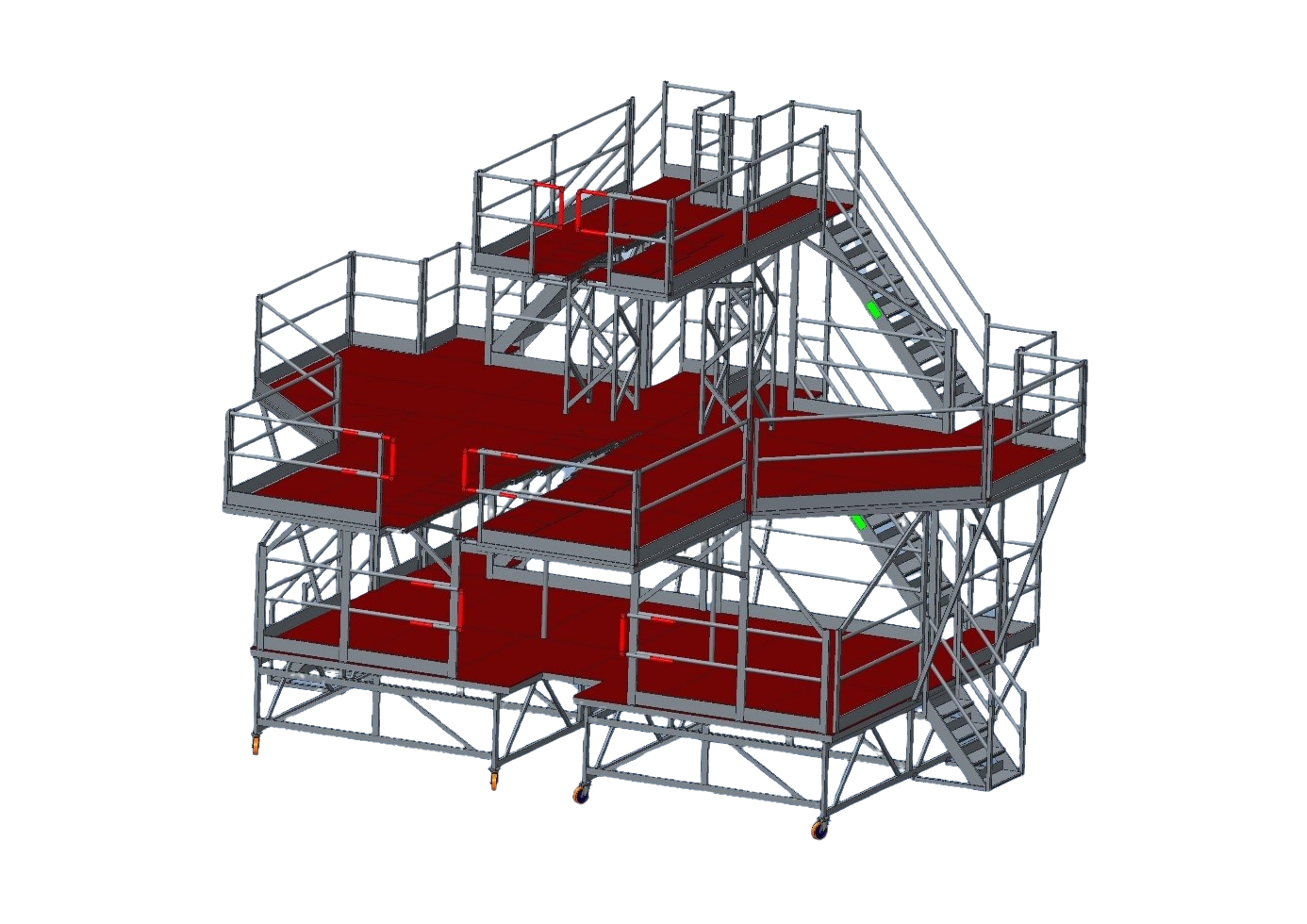

This tail platform is specifically designed for maintenance work on the tail, engine air intake, and flaps of the Falcon 50.
The complete Falcon tail platform consists of two sections: a left platform and a right platform, providing full access to critical maintenance areas.
Constructed entirely from untreated aluminum, the stand offers an exceptional combination of strength and lightweight design. Despite its size, it remains highly durable and easy to maneuver.
The work platforms are equipped with sliding floor panels and telescopic railings. Once the stand is positioned correctly, the remaining gap to the aircraft can be closed, ensuring a completely secure working environment and eliminating any risk of falling.
