Wheel well stand B787
Aircraft
- B787
Suitable as
- Wheel well stand
Specifications
Request your quote
| Type | Maintenance stair |
|---|---|
| Conditions | Indoor use |
| Dimensions (transport) | 2250mm x 1850mm x 2160mm |
| Platform height | 2000mm |
| Platform dimensions | 1100 x 800mm |
| Step width | 800mm |
| Stair angle | 50 degrees |
| Mass | 200 kg |
| Class | EN 12312-8 |
| Max load | 350 kg |

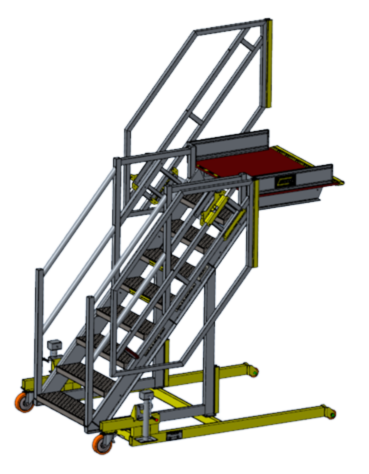

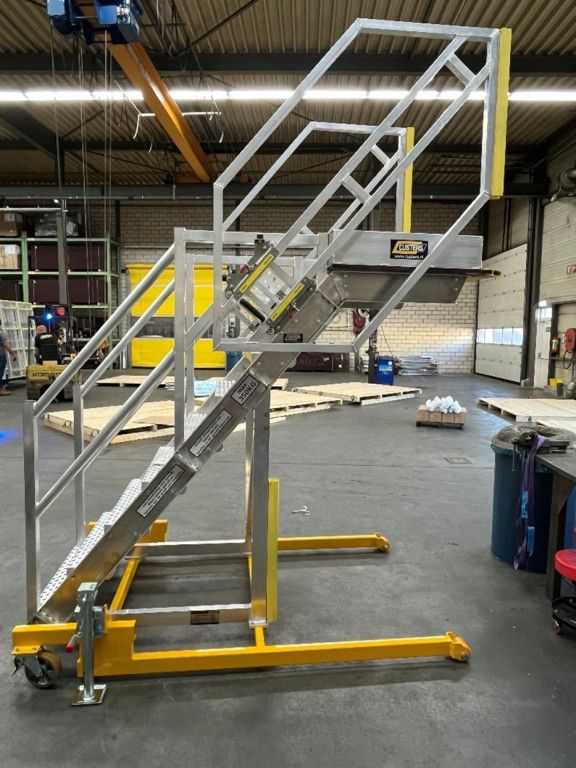

This custom-build aluminium wheel well stair B787 has guardrails which can be positioned in such a way that this provide maximum fall protection at given limited working spot.
The stair is equipped with 4 swivel castors with brakes in both swivel and rolling direction for easy positioning.
This stair B787 with its FOD-free design, is friendly in use, sturdy, stable, suited for maximum load of even 350 kg. In addition to this, it is light and it is fitted with protective rubbers where necessary.
This maintenance stair is for inside use only.
