Wing stand A320
Aircraft
- A320
Suitable as
- Wing stand
Specifications
Request your quote
| Type | Maintenance stair |
|---|---|
| Conditions | Indoor use |
| Dimensions (transport) | 3380 x 2000 x 3180mm |
| Platform height | 2160 – 3120mm |
| Platform dimensions | 760 x 800mm |
| Step width | 760mm |
| Stair angle | 50 degrees |
| Mass | 300 kg |
| Class | EN 12312-8 |
| Max load | 250 kg |

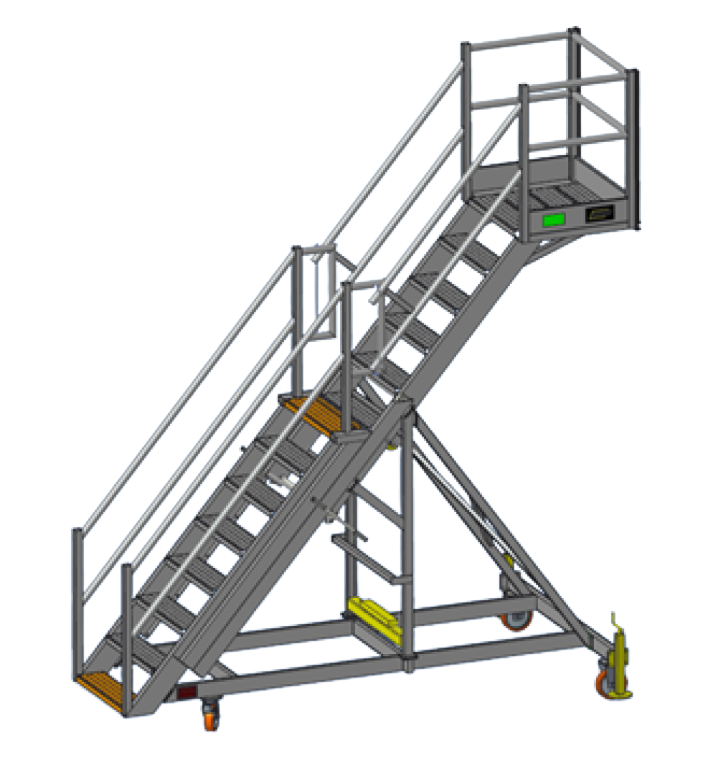

This aluminium wing access stair A320 stair has a work platform with two fixed side handrails and a fixed handrail at the head end.
This narrow body stair with its FOD-free design is equipped with a practical manually operated height adjustment solution (2160mm-3120mm) by using a counterweight, this makes it easy to adjust the height by steps of 25cm each. This feature is also equipped with a double locking mechanism to prevent unwanted height adjustment.
This aluminium stair is friendly in use, sturdy, stable, it is light and easy to manoeuvre and it is fitted with protective rubbers where necessary.
This maintenance stair is for inside use only.
