Maintenance dock AW101 (EH101) adjustable
- AW101
- Maintenance dock
| Type | Maintenance dock |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | |
| Platform height | Adjustable |
| Platform dimensions | |
| Step width | 8oomm |
| Stair angle | |
| Mass | Plus/Minus 5.650 kg |
| Class | EN 12312-8 |
| Max load | 200 kg/m2 |

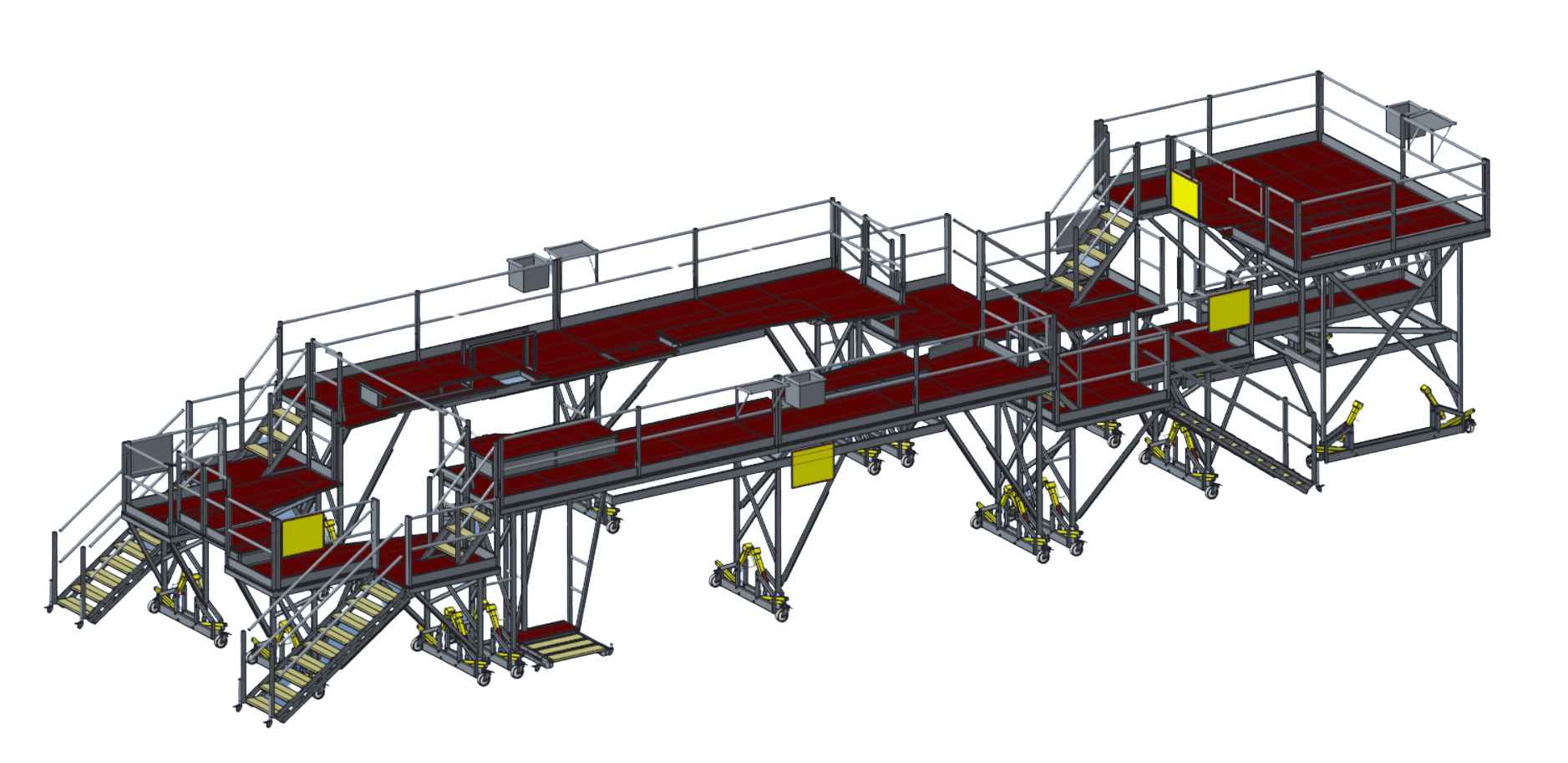

Maintenance dock AW 101 Adjustable
Request your quoteA complete AW101 (EH101) adjustable maintenance dock consists of several individual sections. Each section has its own fixed place on the helicopter and its own function, namely: one left-hand and one right-hand nose section, one left-hand and one right-hand body section, one left-hand and one right-hand tail section and one tail rotor section.
The complete dock is max. 70cm in height adjustable, this is done by means of parallel connection mechanism in the base of the platforms. The sections are designed in such a way that they offer good access to the doors, access panels and helicopter components.
All sections being FOD-free are custom-built to ensure perfect fit around the helicopter. All sections are designed in such a way that their positioning alongside the helicopter will not obstruct effective jack use. This dock is suited for inside and outside use.
