Maintenance dock AW139
Aircraft
- AW139
Suitable as
- Maintenance dock
Specifications
| Type | Maintenance dock |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | |
| Platform height | Varies |
| Platform dimensions | |
| Step width | 8oomm |
| Stair angle | 50 degrees |
| Mass | 850 kg |
| Class | EN 12312-8 |
| Max load | 200 kg/m2 |
Maintenance dock AW-139 AW-189

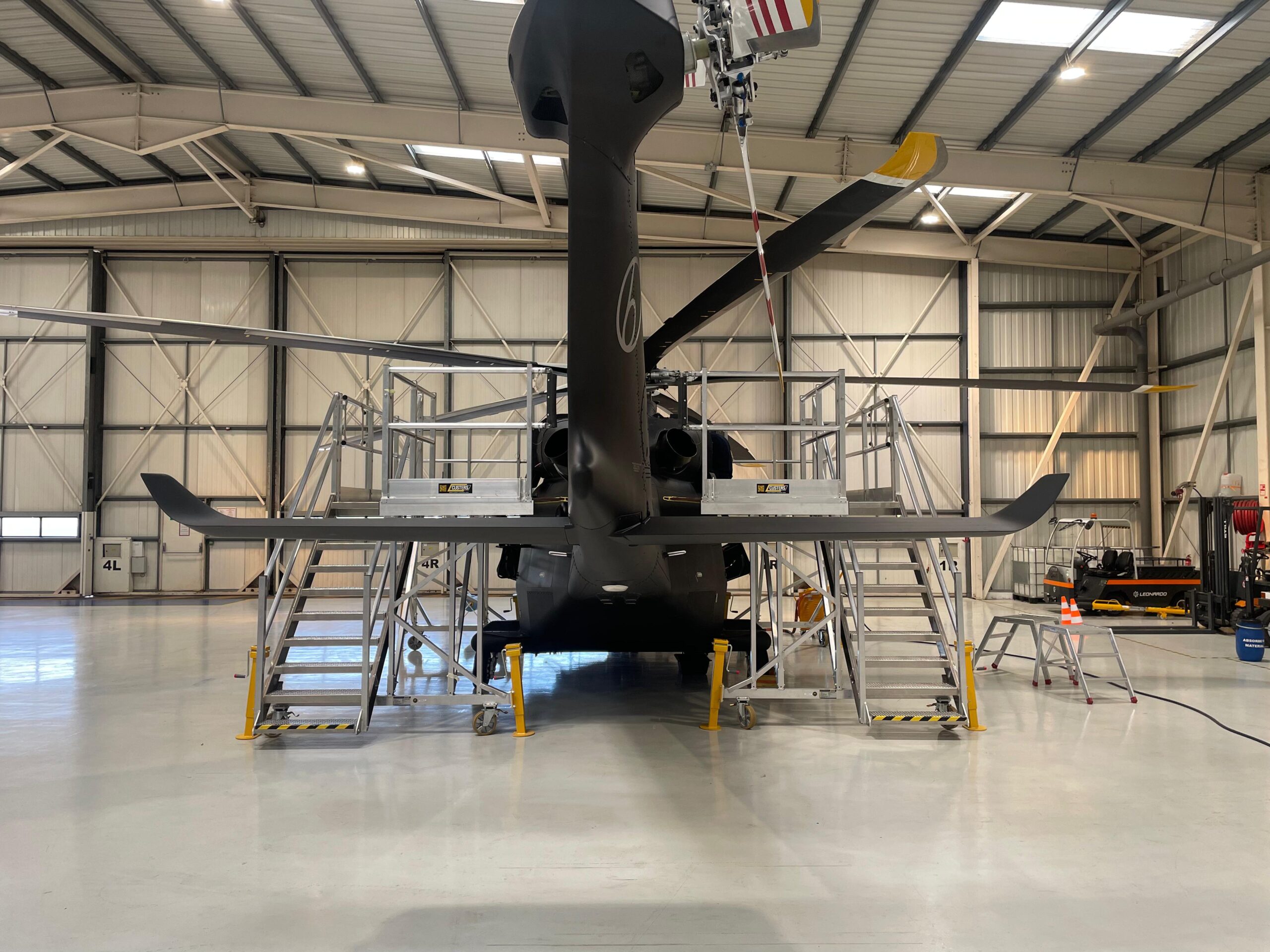

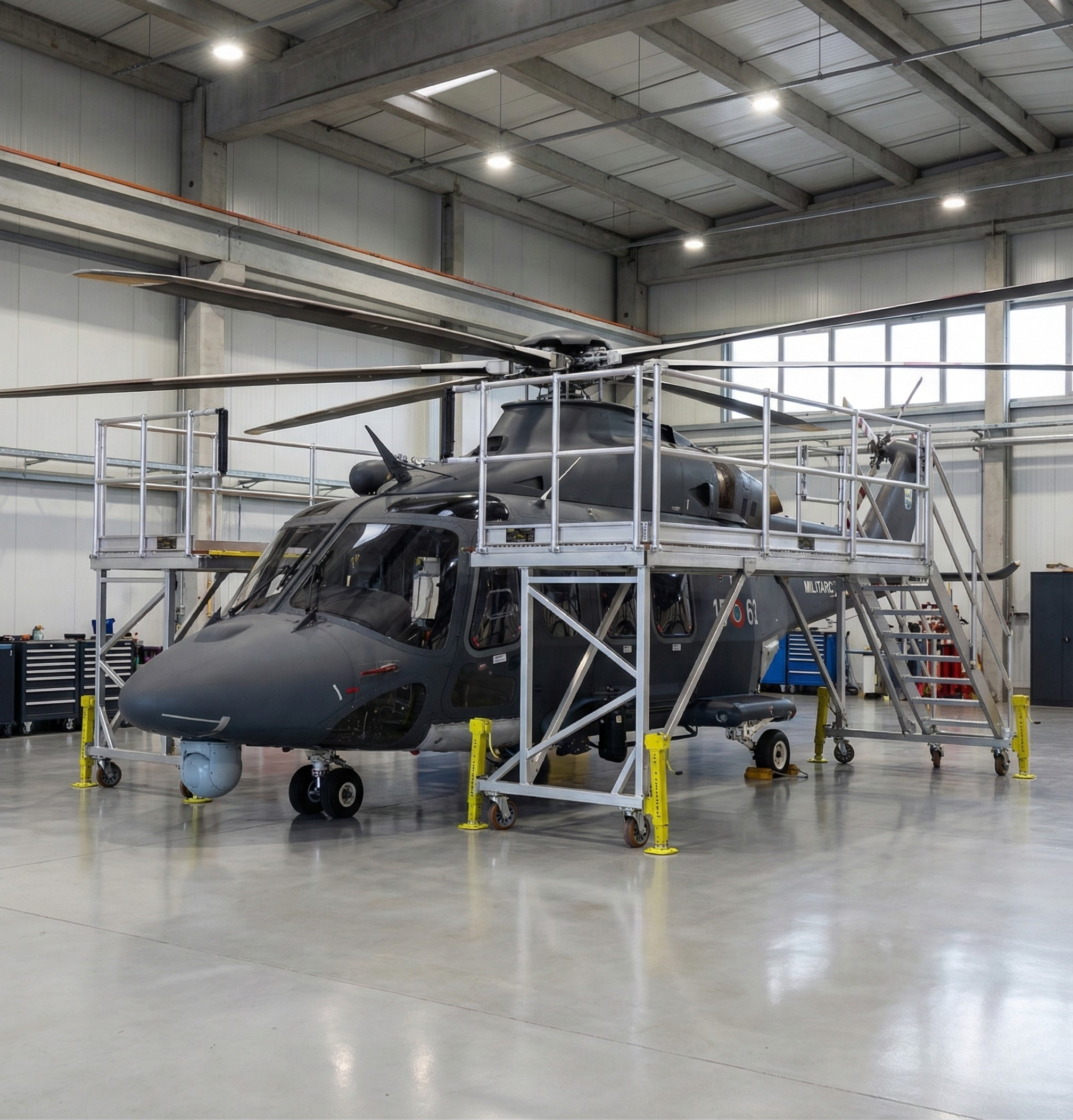

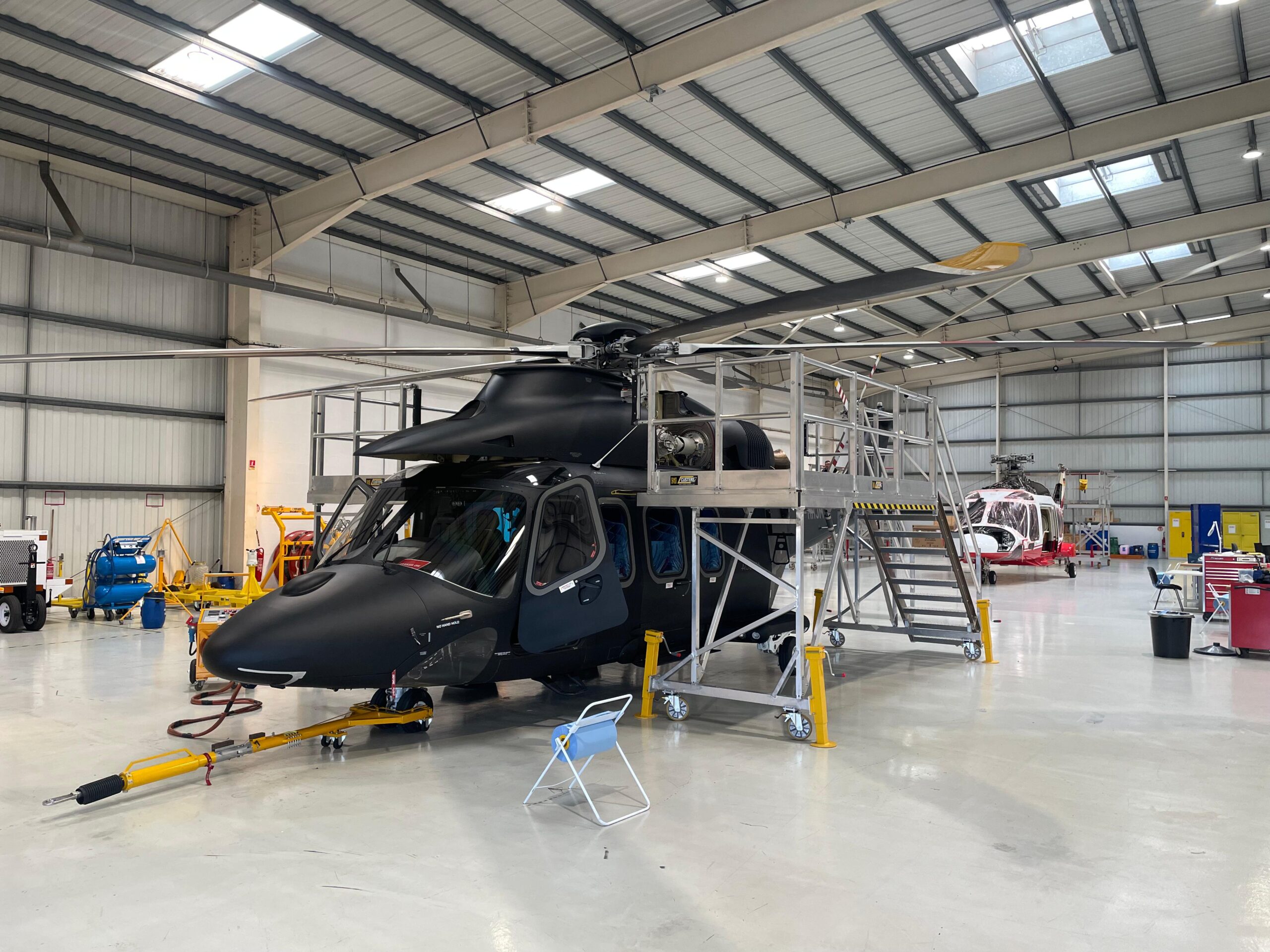

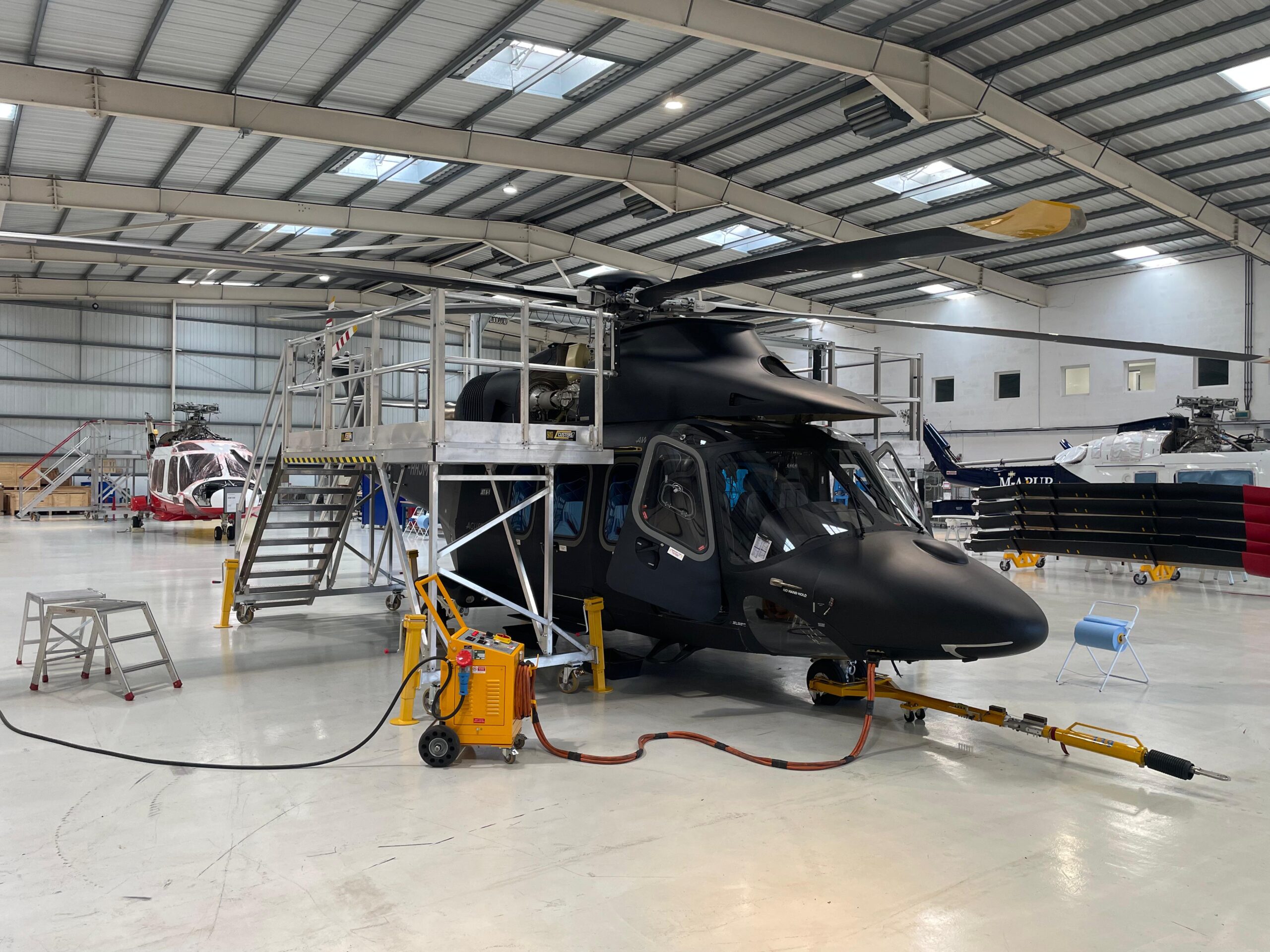

Request your quoteThe complete maintenance dock suited for AW139 consists of a LH and RH work-platform.
Each dock-section is easily accessible by the aluminium stairways and has a non-skid carrosply floor. Each and every dock has support wheels equipped with adjustable spindles which makes precise levelling of each dock possible.
This stand provides quick and safe access to most relevant parts of the aircraft.
The complete maintenance dock has a FOD-free design, it is fitted with protective rubbers where necessary and is suited for inside and outside use.
