Maintenance dock Chinook CH-47

Aircraft
  • CH-47
Suitable as
  • Maintenance dock
Specifications
Type Maintenance dock
Conditions Inside and outside use
Dimensions (transport)
Platform height Varies
Platform dimensions
Step width 8oomm
Stair angle 50 degrees
Mass Plus/Minus 5.200 kg
Class EN 12312-8
Max load 200 kg/m2
Request your quote

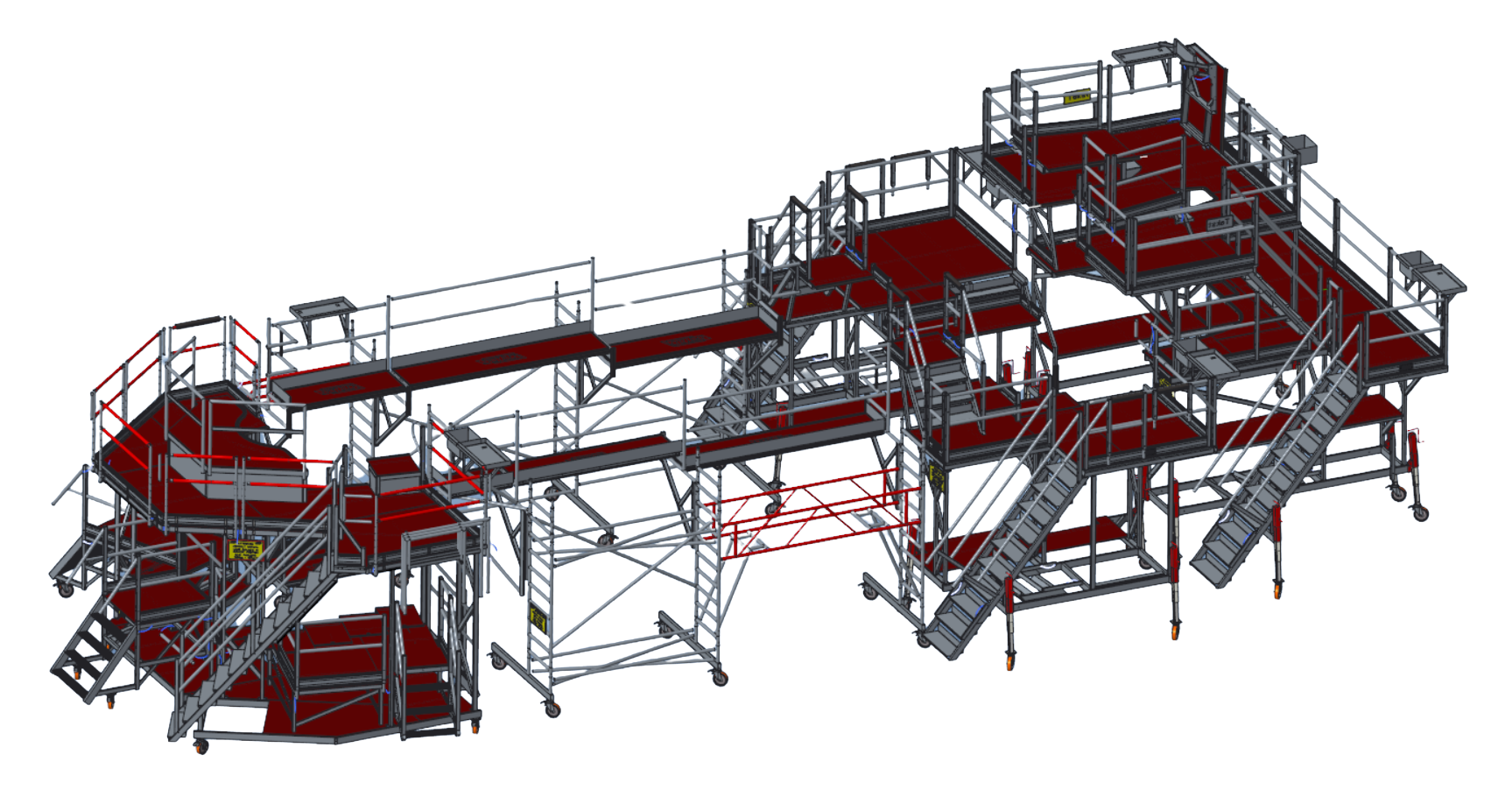

Chinook maintenance dock consists of:

  • Platform (left side)
  • Platform (right side)
  • Stair (front side cockpit)
  • Left engine platform
  • Right engine platform

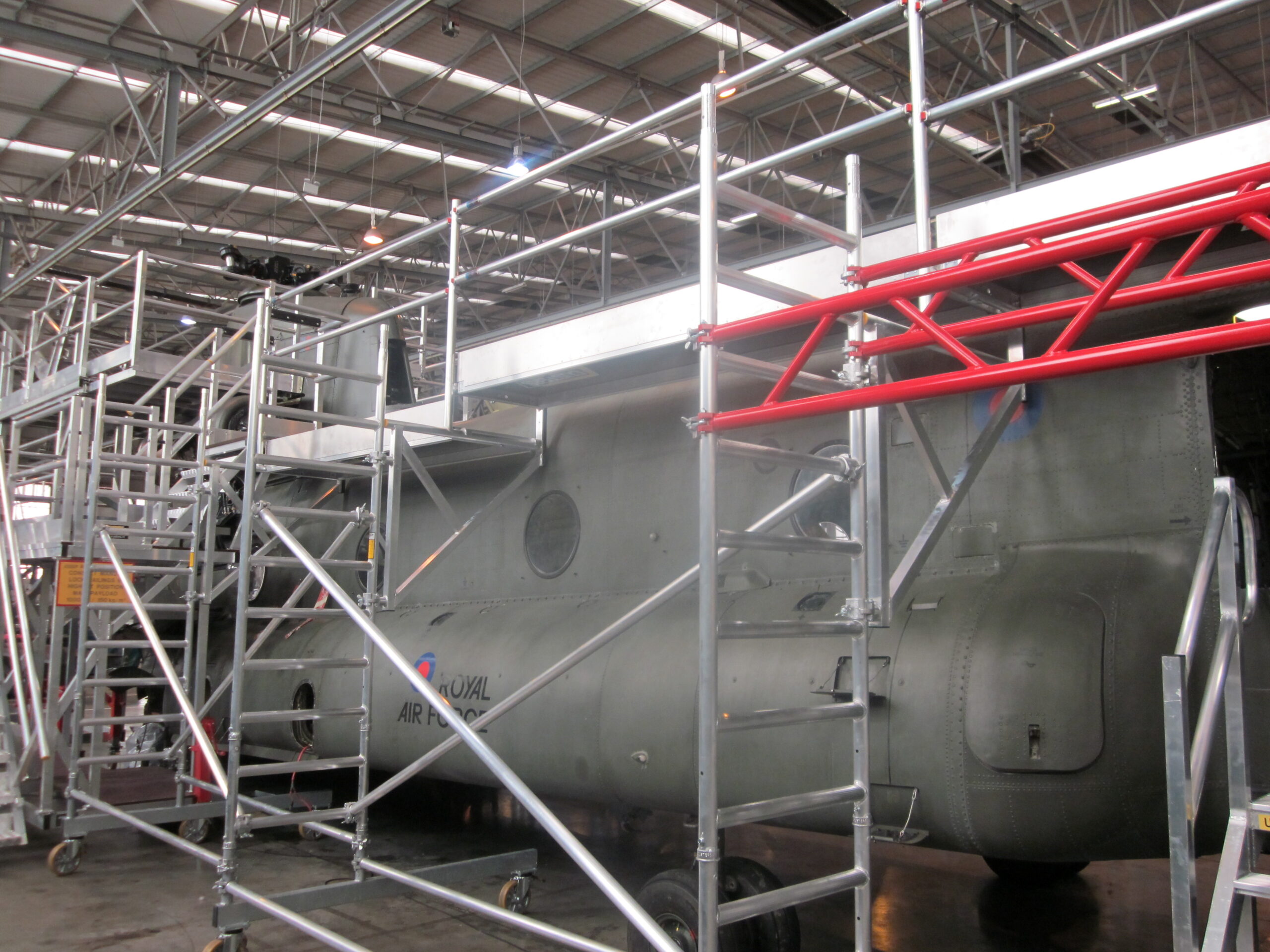

  • Body maintenance platform
  • Body maintenance platform
  • Tail maintenance platform

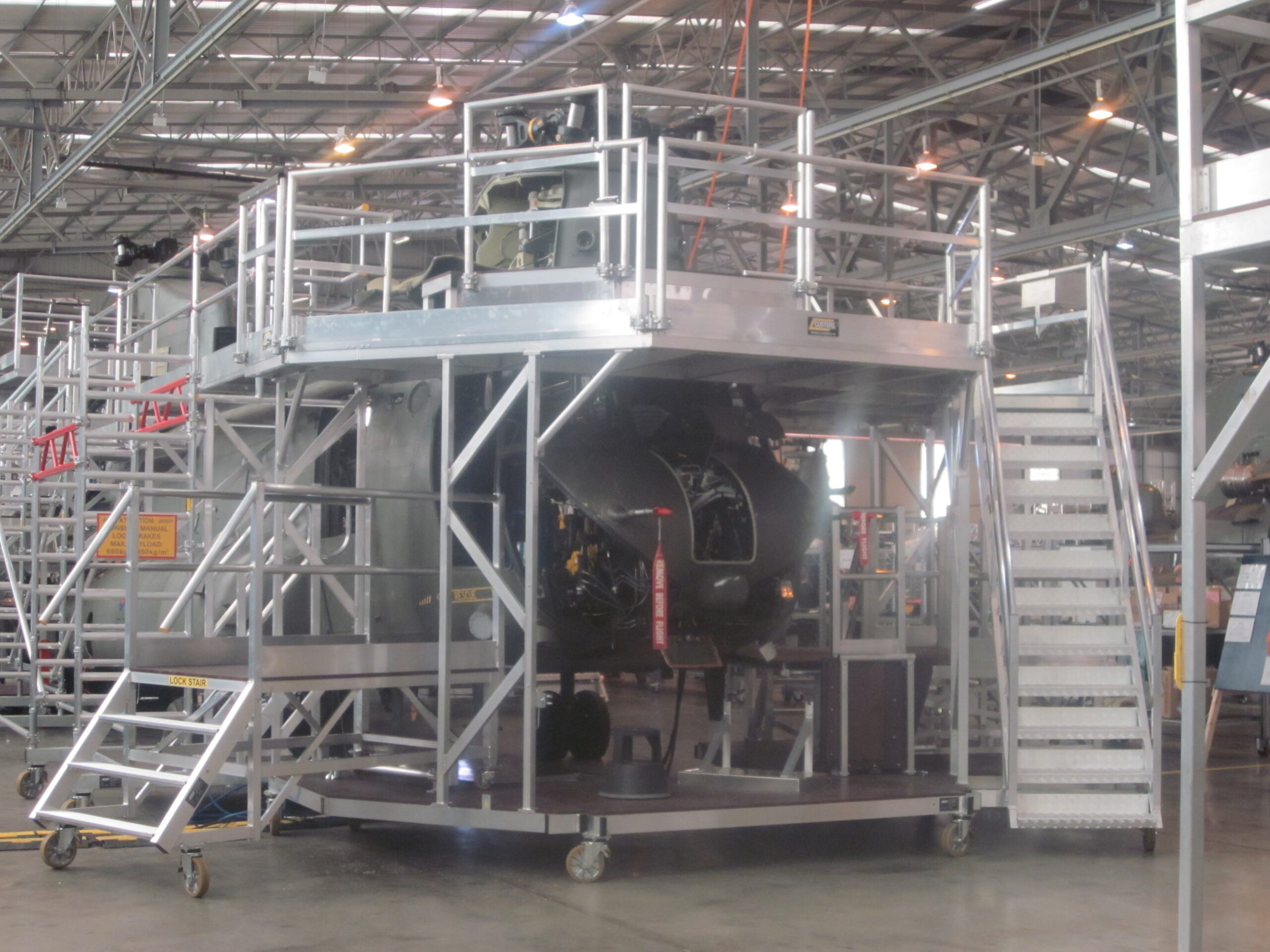

  • Nose maintenance platform

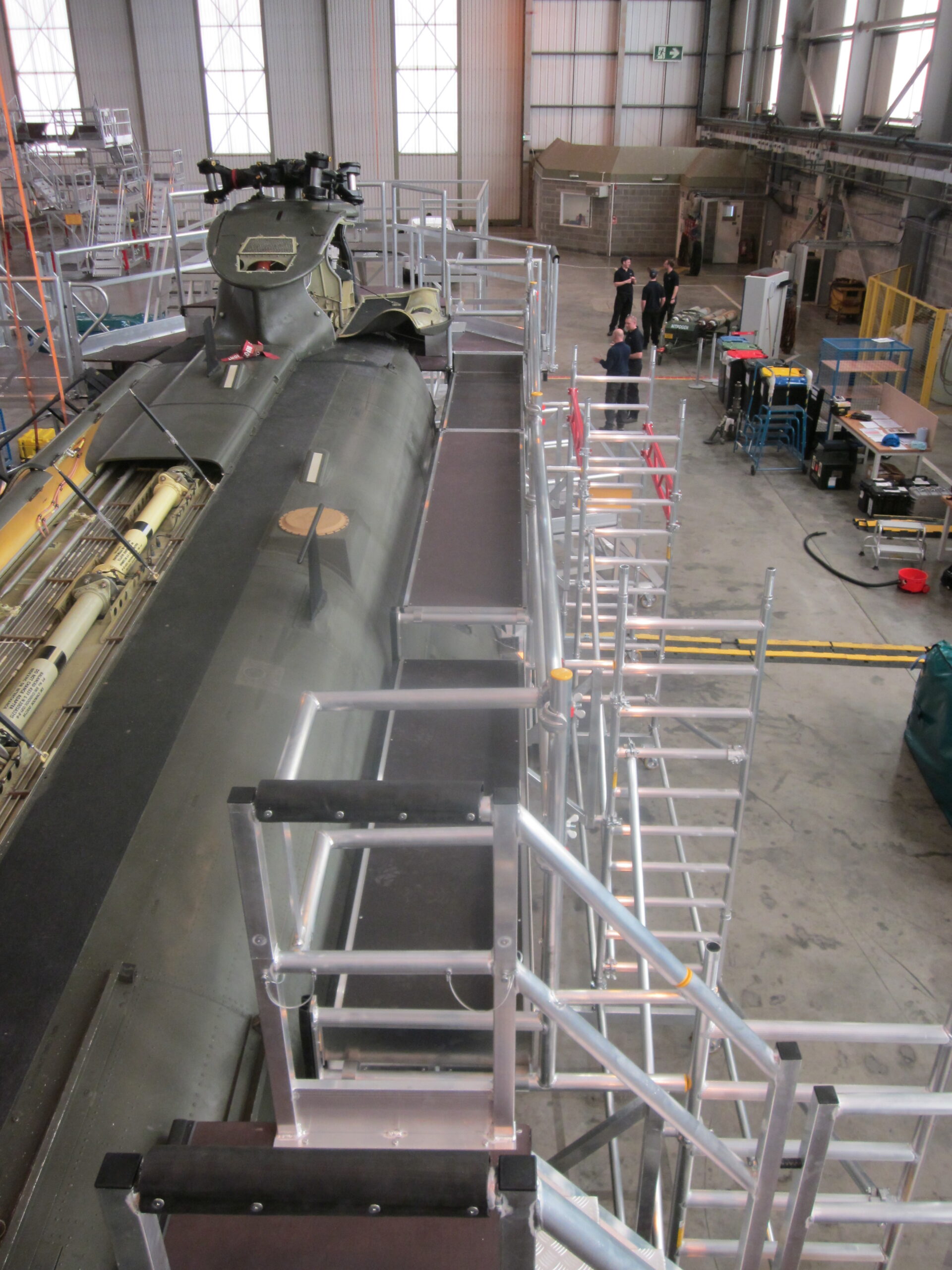

All dock-section are connected with each other and provide easy and safe access to all relevant parts of the Chinook helicopter.

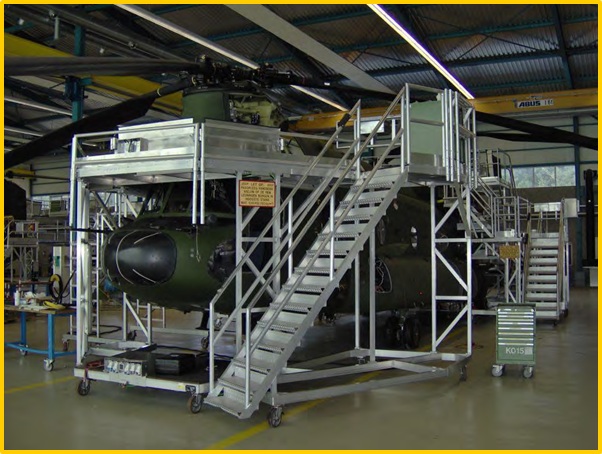

The engine and tail dock-sections have support wheels equipped with spindles which makes precise levelling of these docks possible. Each dock-section is easily accessible by the aluminium stairways and has a non-skid carrosply floor.

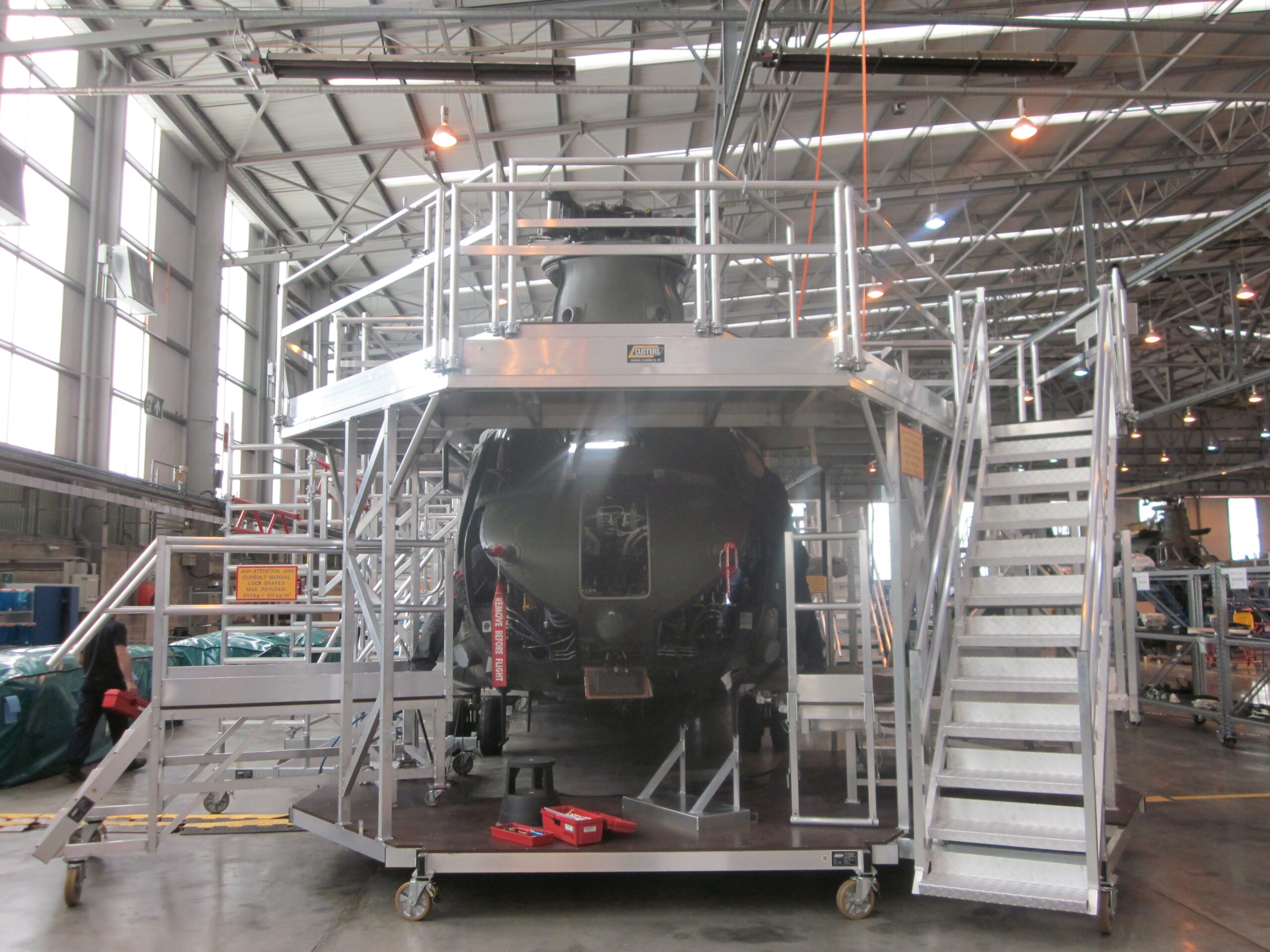

Parts of the guardrails on the nosedock can be made retractable in order to secure no interference with the rotorblades.

This dock has a FOD-free design, it is fitted with protective rubbers where necessary and is suited for inside and outside use.
