Wash dock Chinook CH-47
Aircraft
- CH-47
Suitable as
- Wash dock
Specifications
Request your quote
| Type | Wash dock |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | |
| Platform height | Varies |
| Platform dimensions | |
| Step width | 800mm |
| Stair angle | 50 degrees |
| Mass | Plus/Minus 3.350 kg |
| Class | EN 12312-8 |
| Max load | 200 kg/m2 |

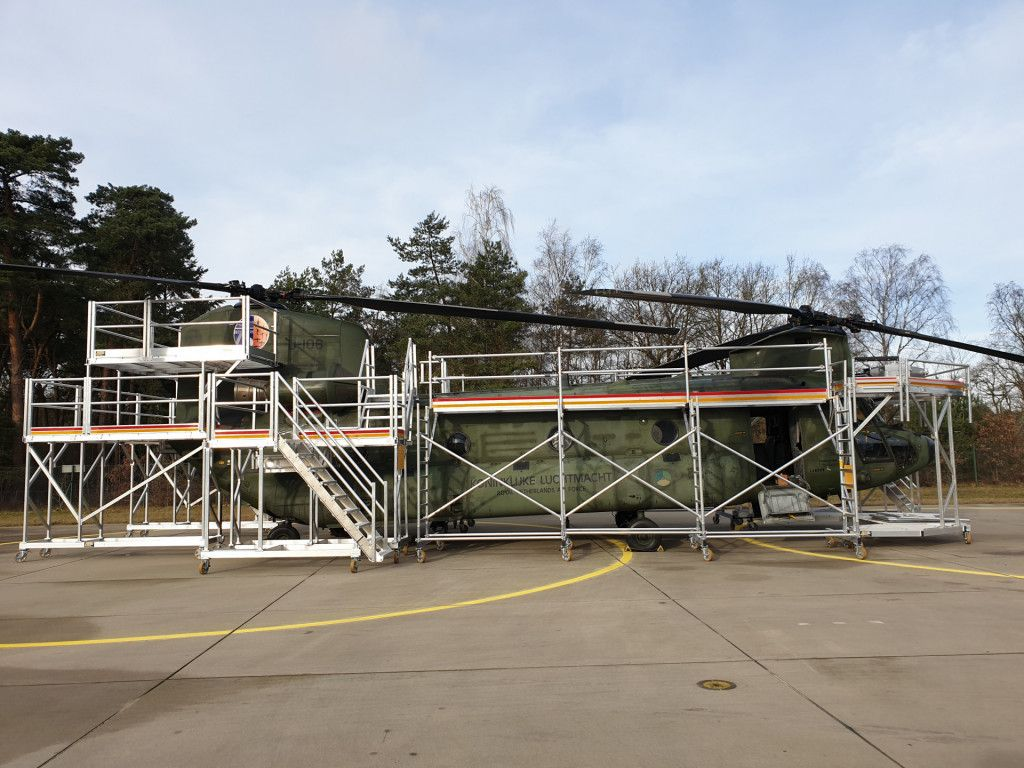

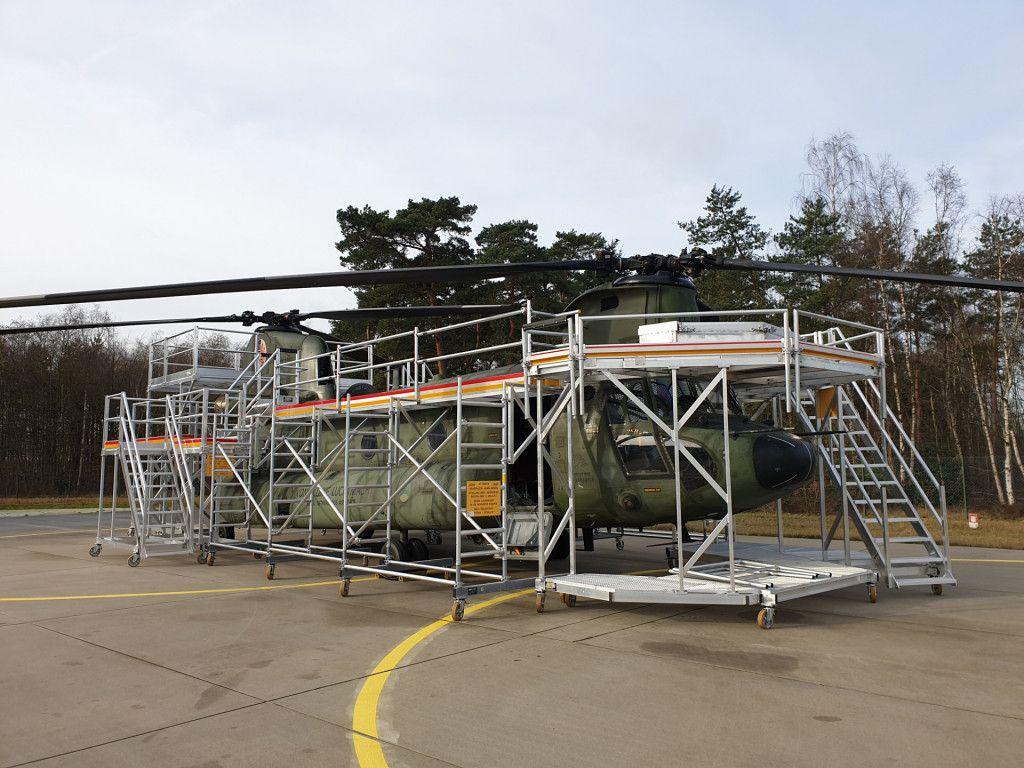

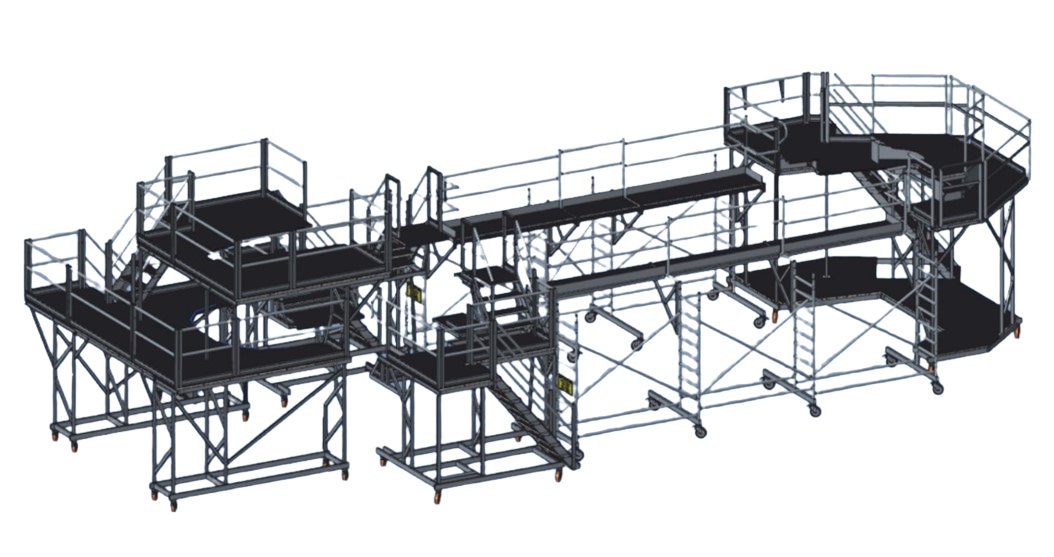

This wash dock completely encloses the CH-47 helicopter. The sections can easily and quickly be placed all around, the working platforms have an open aluminium grid floor, which offers sufficient grip. The dock-sections that can come into contact with the helicopter are fitted with sound soft protective profiles to protect the helicopter. The wash dock is FOD-free, which implies that no parts (attachments or otherwise) can come loose during use or transport.
This stand provides safe access to most relevant parts of the aircraft.
It is friendly in use and the wash dock is suited for both inside and outside use.
