Engine stand A400M
Aircraft
- A400M
Suitable as
- Engine stand
Specifications
Request your quote
| Type | Maintenance stair |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | 4900 x 4500 x 2300 |
| Platform height | Varies |
| Platform dimensions | 3000 x 1100mm |
| Step width | 750mm |
| Stair angle | 45 degrees |
| Mass | 3200 kg |
| Class | EN 12312-8 |
| Max load | 250 kg |

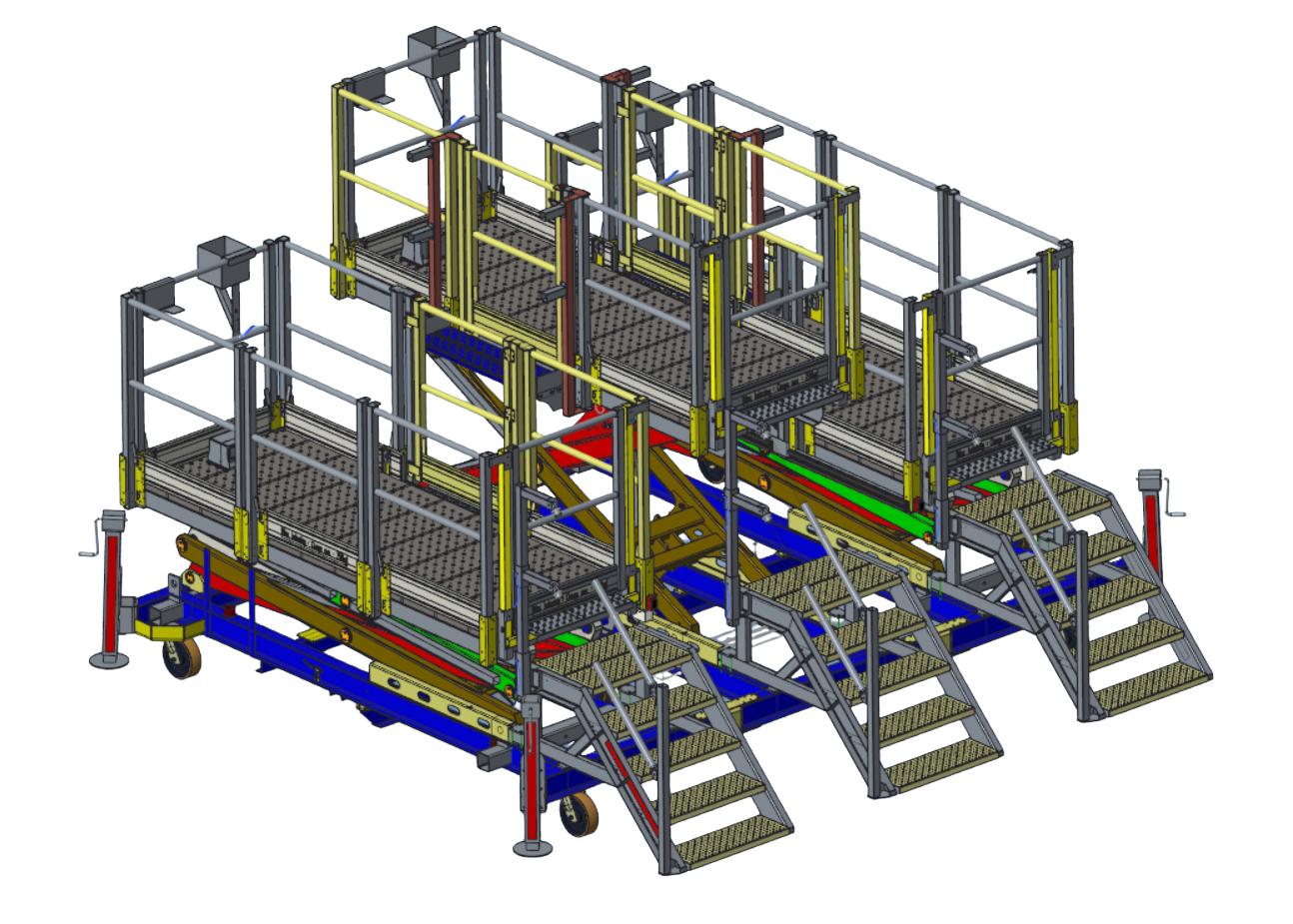

This stand has a variable platform height from 1400mm in the lowest position to 2000mm for the middle platform and 5000mm maximum platform height for the outer platforms.
The dimensions of the individual work platforms are 3160mm long and 1200mm wide measured over the outside.
The height of the individual platforms is electrically adjustable.
Centrally located on the 3 individual platforms is a control box with emergency stop for controlling lowering or lifting movements.
Two persons with tools can simultaneously work on each platform with a load capacity of 250kg each.
