Maintenance dock C130
Aircraft
- C130
Suitable as
- Maintenance dock
Specifications
Request your quote
| Type | Maintenance dock |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | |
| Platform height | |
| Platform dimensions | |
| Step width | 8oomm |
| Stair angle | 50 degrees |
| Mass | Plus/Minus 20.000 kg |
| Class | EN 12312-8 |
| Max load | 300 kg per stand |

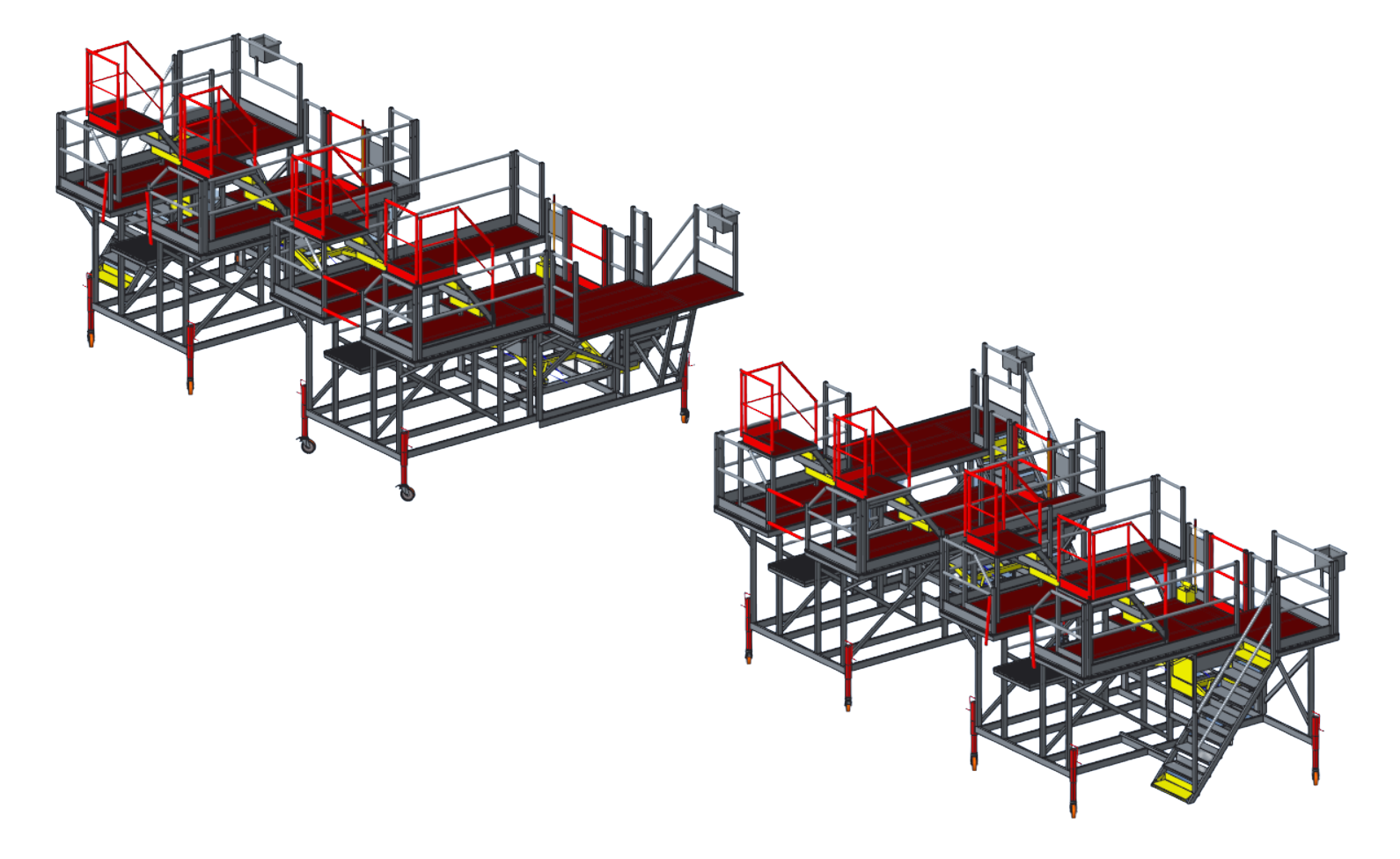

The maintenance C-130H consists of following dock-sections to maintain engine and wing-flaps:
- right-hand inboard engine platform
- left-hand inboard engine platform
- right-hand outboard engine platform
- left-hand outboard engine platform
- right-hand inboard wing flap section
- left-hand inboard wing flap
- right-hand outboard wing flap section
- left-hand outboard wing flap section
- boarding platforms and waste bins.
It is a custom-build mobile maintenance dock with an integrated hydraulic scissorlift mounted in the outboard engine platform. The wing flap platforms are in height adjustable. Safe access is provided by stairways with aluminium steps.
The dock is a FOD-free design, it is fitted with protective rubbers where necessary and is suited for inside and outside use.
