Propellor stand A400M
Aircraft
- A400M
Suitable as
- Propeller stand
Specifications
Request your quote
| Type | Maintenance stand |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | 5200x 3480 x 4000 |
| Platform height | Varies |
| Platform dimensions | 5050 x 1250mm |
| Step width | 8oomm |
| Stair angle | Varies |
| Mass | 885 kg |
| Class | EN 12312-8 |
| Max load | 250 kg |

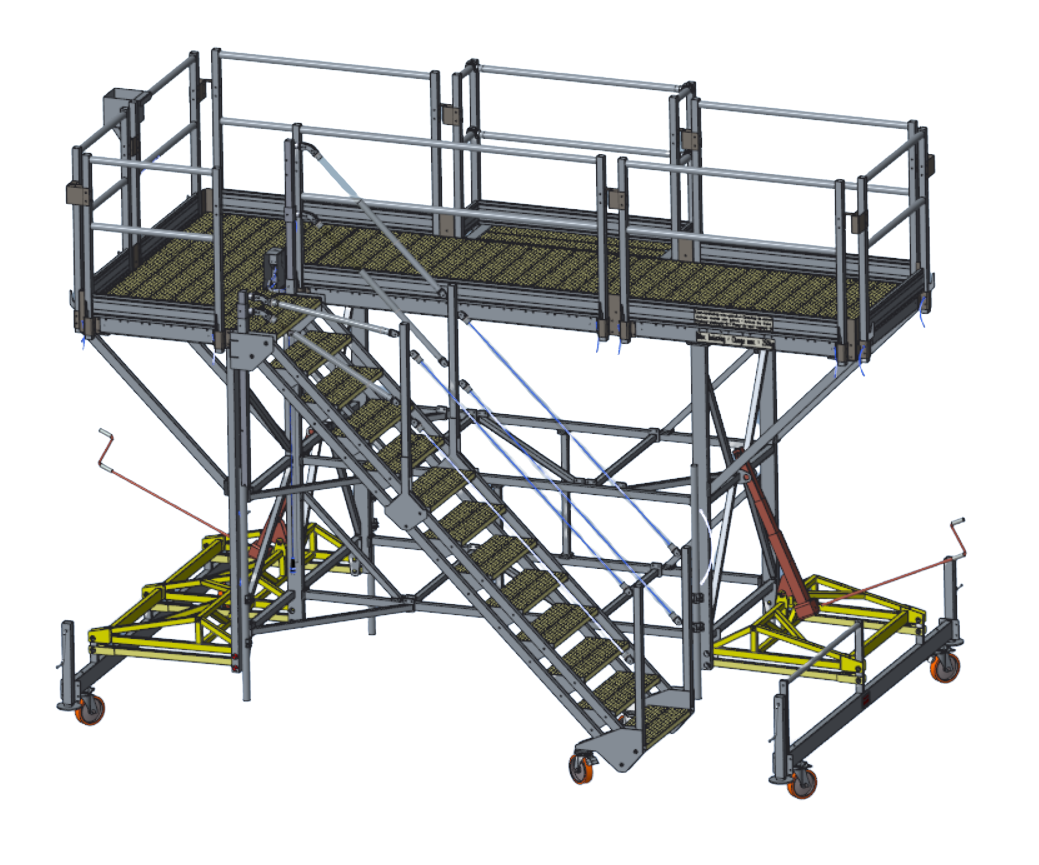

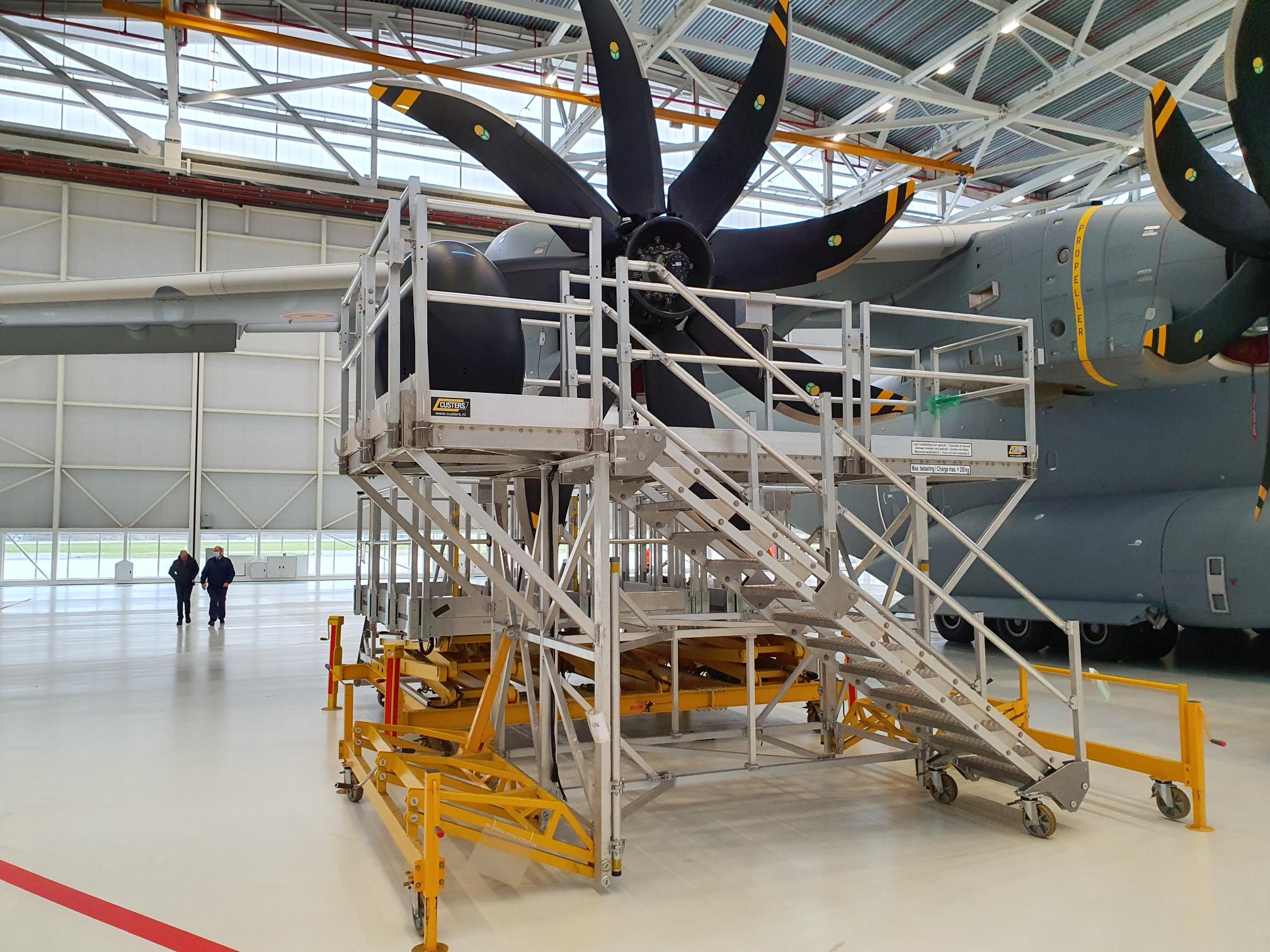

This stand has a platform height of 2800mm combined with a platform width of 1248mm measured between the handrails and a platform length of 5072mm in total.
The stair-access is parallel to the longitudinal direction of the platform.
A height adjustment system is provided that allows the platform to be adjusted 400mm lower or 400mm higher.
Two people with tools can work on the platform with a load capacity of 250 kg.
The scaffold is fitted with extra outriggers that guarantee stability and also compensate for unevenness/slanting in the ground.
The outriggers are painted in a signal colour.
