Wheel rack A400M
Aircraft
- A400M
Suitable as
- Wheel rack
Specifications
Request your quote
| Type | Wheel rack |
|---|---|
| Conditions | Inside and outside use |
| Dimensions (transport) | 2720 x 1900 x 1385 |
| Platform height | |
| Platform dimensions | |
| Step width | |
| Stair angle | |
| Mass | 236 kg |
| Class | |
| Max load | 5 wheels |

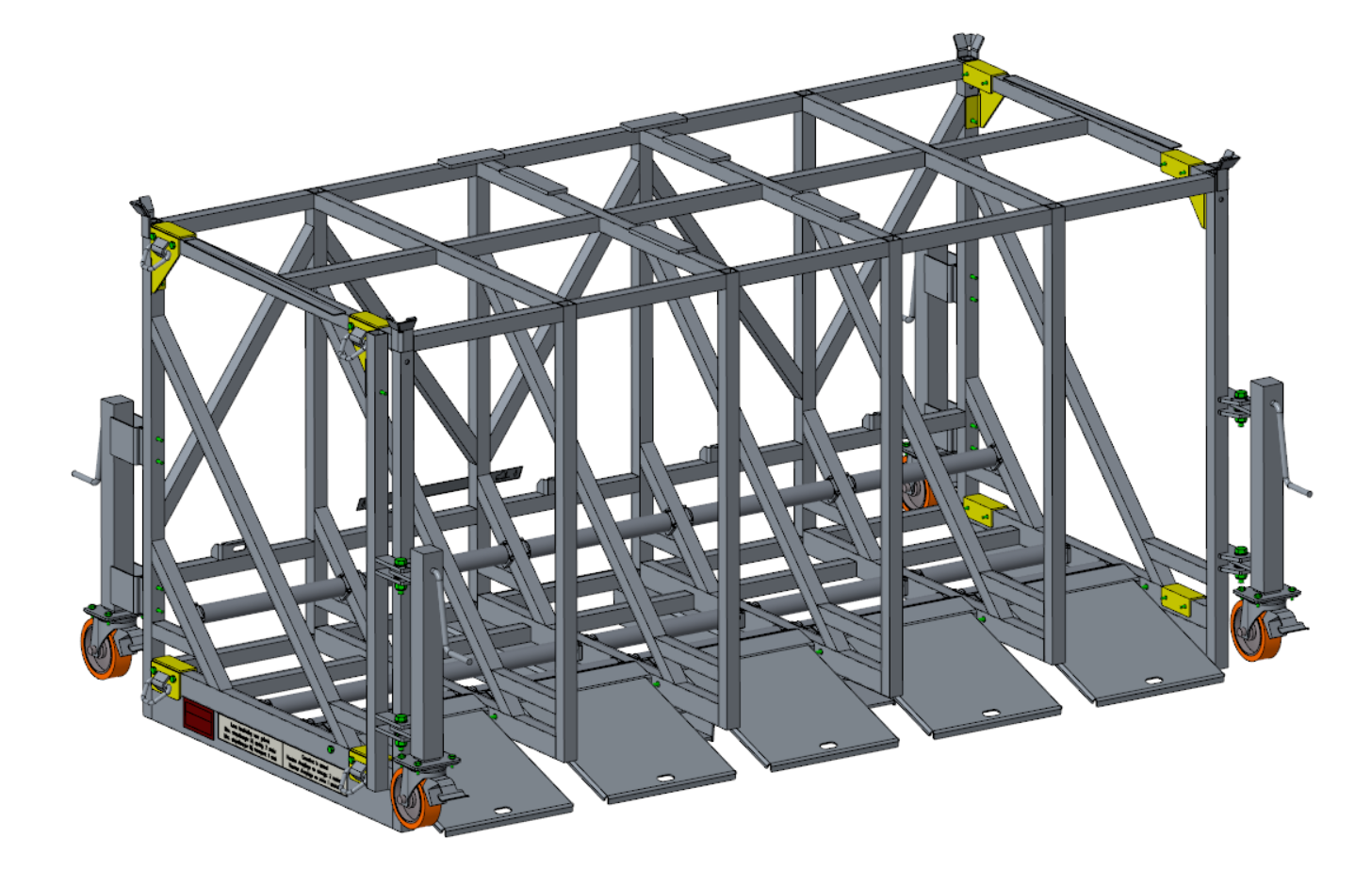

These wheel racks are designed for the storage and transport of the main and the nose wheels.
The wheekrack is made of untreated aluminium and assembled with stainless steel components and signal colour painted outriggers.
The wheels are on rollers in the rack allowing periodic twisting.
The rack is fitted with lashing eyelets to lash it to the aviation pallet or directly to tie downs.
The rack is fitted with 4 braked swivel castors, the 160mm diameter ensures trouble-free rolling on less flat surfaces or over cables, for example.
It is possible to lift the rack with forklift forks: special brackets have been fitted on the long side for this purpose.
